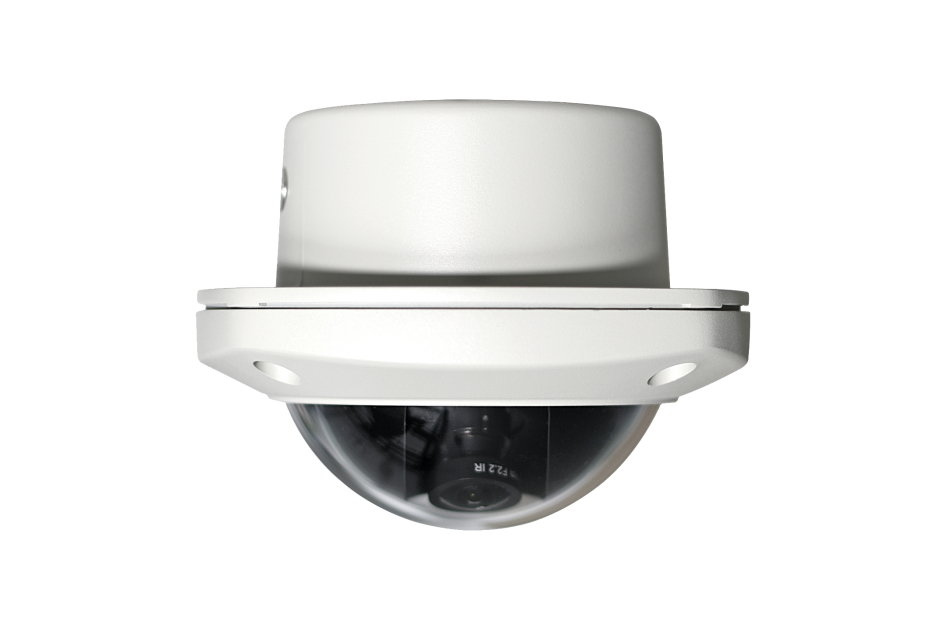

eneo - ISD-52F0023WFA
Available, delivery time: 2-3 days
1/2,8'' Netzwerk Dome, WDR, 1920x1080, Tag/Nacht, 2,3mm H.265, PoE, 12VDC, Einbau
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - ISD-52F0023WFA"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line Availability remaining quantity: 50+
- Expectation: 0
- Replacement time: -
- Last update: 31.03.2025 - subject to prior sale
Kameratechnik - Fix Domes - eneo - ISD-52F0023WFA
1/2,8'' Netzwerk Dome, WDR, 1920x1080, Tag/Nacht, 2,3mm H.265, PoE, 12VDC, Einbau
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' 2.0 MP Sony STARVIS CMOS-Sensor
- Auflösung max. 1920x1080 (Full HD)
- Festbrennweite 2,3mm, Tag/Nacht Objektiv (HFoV 135°)
- Quad Streaming (H.265, H.264, MJPEG)
- Intelligente selbstlernende Video Analyse (IntelliVision inside)
- WDR 120dB, Smart BLC
- Steckplatz für Micro SD-Speicherkarte
- ONVIF-Konformität, PoE IEEE802.af, 12VDC
- Audio-, Alarm- Ein- und Ausgänge
- Privatzonen, Passwortschutz, Browserunabhängig
- Anhebung der Bildwiederholrate bei Bewegung
- Für den Innen- und Außeneinsatz geeignet IP66, Einbaugehäuse
Specifications
| Dimensions (HxWxD) | 95x120mm |
| Alarm outputs | 1 |
| Alarm inputs | 1 |
| Analysis functions | motion detection |
| Audio | 2 Way Audio |
| Audio support | yes |
| Resolution standard | HD 1080p |
| Imager | CMOS |
| Illumination | no |
| Motion detector | yes |
| Resolution max. | 1920x1080 |
| Image transmission rate max. | 30 fps |
| Horizontal angle of view | 135° |
| Vertical angle of view | 75° |
| Iris control | no |
| Focal length | 2,3 mm |
| Sensor size | 1/2.8'' |
| Digital zoom | yes |
| Digital Noise Reduction (DNR) | yes |
| Ethernet interface | 10Base-T |
| Colour (housing) | white |
| Colour (bubble) | clear |
| Remote configuration | web browser |
| Backlight compensation | Smart BLC |
| Housing | outdoor |
| Housing material | aluminium |
| Weight | 650g |
| Heater | no |
| Internal storage | microSDHC card |
| Camera type | Dome |
| Power consumption | 4.8W |
| Sensitivity | 0,08 Lux |
| Sensitivity | bei F2,2 |
| Low speed shutter | yes |
| Blower | no |
| MOD (Minimum object distance) | 0,3 m |
| Mounting | ceiling/wall flush mount |
| Lens type | fixed focal length |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66 |
| Series | eneo SN-Series |
| Supply voltage | 12VDC |
| System | True Day&Night |
| Day&Night switch | ICR |
| Temperature range (operation) | -20°C ~ +50°C |
| Vandalism resistant | yes |
| Compression standard | H.264 |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certificates | IK10 |
| Analysis functions | motion analysis |
| Ethernet interface | 100Base-TX |
| Internal storage | microSDXC card |
| Sensitivity | 40IRE |
| ONVIF | ONVIF Profile T |
| Supply voltage | PoE |
| Compression standard | H.265 |
| Analysis functions | intrusion |
| Compression standard | H.264+ (Smart Stream) |
| Analysis functions | tampering protection |
| Compression standard | H.265+ (Smart Stream) |
| Analysis functions | Defog |
| Compression standard | M-JPEG |
| Analysis functions | Digital Image Stabilization |
| Remote configuration | Browser |
| Analysis functions | Perimeter Intrusion Detection (PID) |
| Analysis functions | Tampering Detection (TD) |
| Analysis functions | DIS (digital image stabilisation) |
| Backlight compensation | BLC |
| Lichtempfindlichkeit | 0,08 Lux at F2,2, 40 IRE |
| Lichtempfindlichkeit | 0,08 Lux at F2,2, 40 IRE |
| Manufacturers sheet | Download PDF-document |
