SimonsVoss - SmartBridge MobileKey - MK.SMARTBRIDGE.ER
Delivery Time 7-8 weeks
The online version is a system extension that lets you connect your locking system via a SmartBridge directly to the MobileKey web service.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270

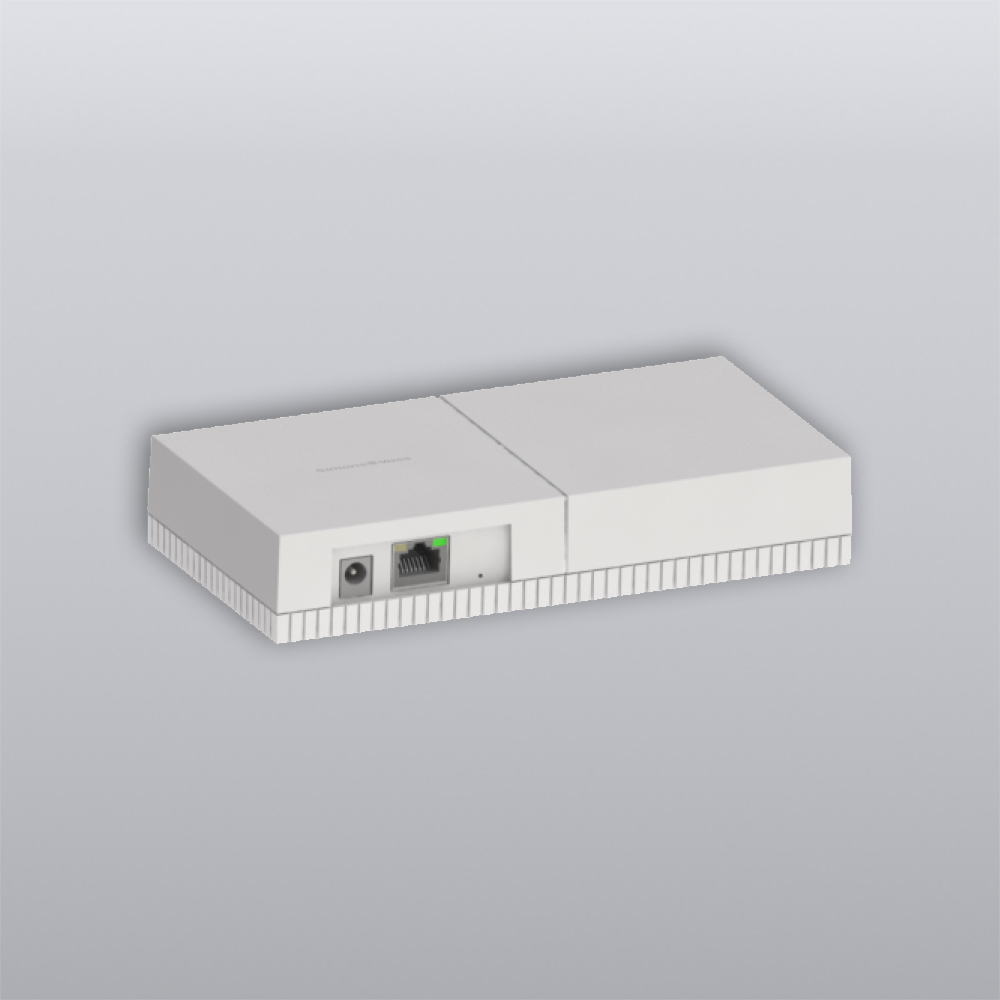

The online version is a system extension that lets you connect your locking system via a SimonsVoss - SmartBridge MobileKey - MK.SMARTBRIDGE.ER directly to the MobileKey web service. All programming tasks are retrieved via the SmartBridge and the locking devices are automatically programmed. You therefore no longer need the config device for your programming activities. Plus the online extension enables a number of further functions, such as remote locking transactions or notification when doors open. SmartBridge MobileKey for linking the MobileKey locks with the SimonsVoss server. Ethernet version for connection to a network node.
Technical details:
- Housing made of ABS plastic, UV-stable; colour: 9/118645, same as RAL 9016 (Traffic white)

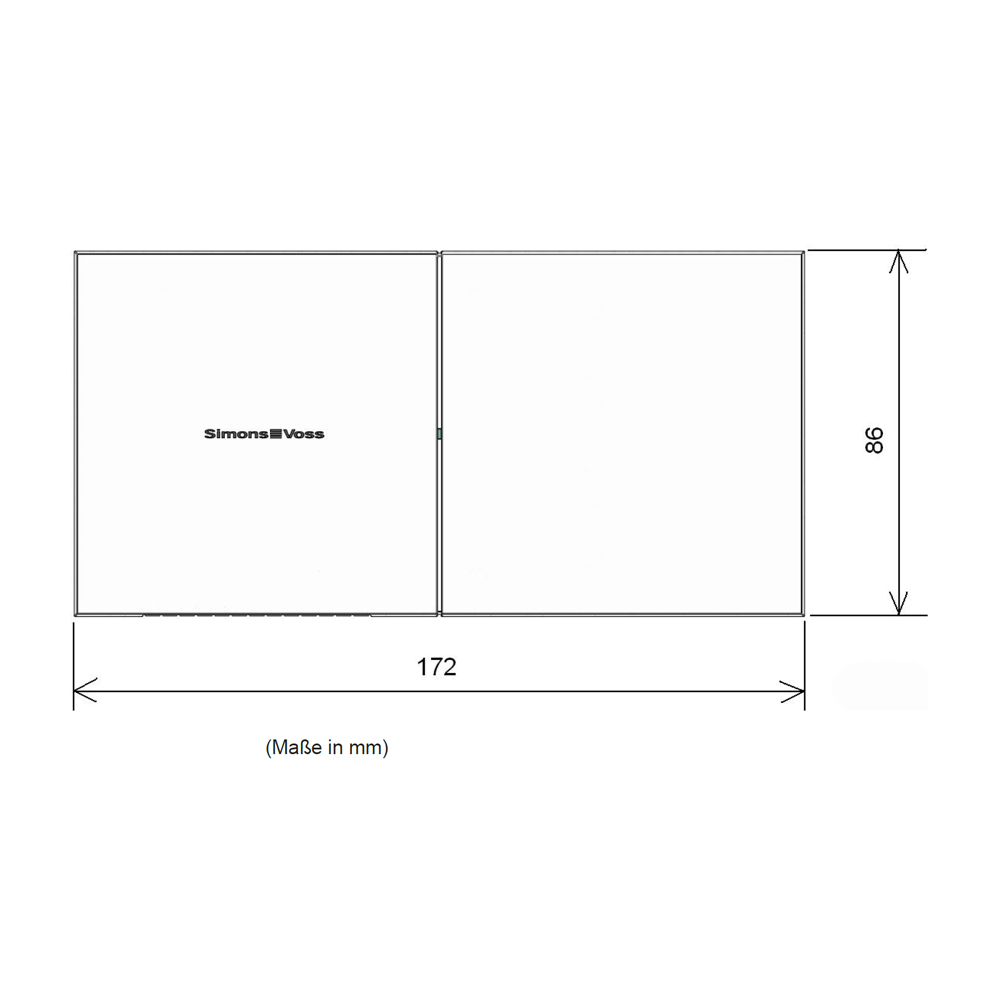

- Dimensions: 1 72 x 86 x 33 mm (L x W x H)
- Radio frequency: 868.xx – 870 MHz
- Output: max. 3 VA
- Radio module transmission power: 10 dBm (6.3 mW) to the antenna socket
- External power supply: regulated mains adapter 9-24 also PoE-capable (802.3af) VDC: MK.SMARTBRIDGE.ER, without PoE the power supply POWER.SUPPLY.2 is needed (not included in the delivery)
Login
- Housing made of ABS plastic, UV-stable; colour: 9/118645, same as RAL 9016 (Traffic white)
- Dimensions: 1 72 x 86 x 33 mm (L x W x H)
- Radio frequency: 868.xx – 870 MHz
- Output: max. 3 VA
- range: up to 30 m
- Radio module transmission power: 10 dBm (6.3 mW) to the antenna socket
- External power supply: regulated mains adapter 9-24 also PoE-capable (802.3af) VDC: MK.SMARTBRIDGE.ER, without PoE the power supply POWER.SUPPLY.2 is needed (not included in the delivery)
The following accessories are required for programming:
- for nline networking with the SmartBridge, the other MobileKey components need a LockNode (.LN)
- Registration via Web-App on the MobileKey Cloud
Web-App - Cloudbased locking software
The web app is used to create locking plans with access authorisations, which are then stored on the SimonsVoss server. The locking plans can be viewed and processed with any standard browser technology. The web service generates locking plan data automatically for the individual MobileKey system and makes the data available for programming with the USB config device.
Web-App: Login & Register
Key4Friends - App
Sharing keys securely with friends has never been easier: The Key4Friends app receives keys from the MobileKey web app that the owner wants to share with you. The function is quickly explained: the owner of the door sends you authorization for one or more doors via the MobileKey web app. You can then use the Key4Friends app to open and lock the corresponding doors. Key4Friends is quick, easy, free and secure to install. During registration, you will only be asked for your email address and telephone number. For verification, we will send you a code via SMS. The unique connection between the SIM card and the email address means that no password is required. Important: To open or close a door with the Key4Friends app, the smartphone needs an online connection. This may result in fees depending on the tariff. Don't worry - the amount of data sent is minimal.
