eneo - INT-8SF0003M0A
Item no.:
236317
Vendor item no.:
236317
Available, delivery time: 2-3 days

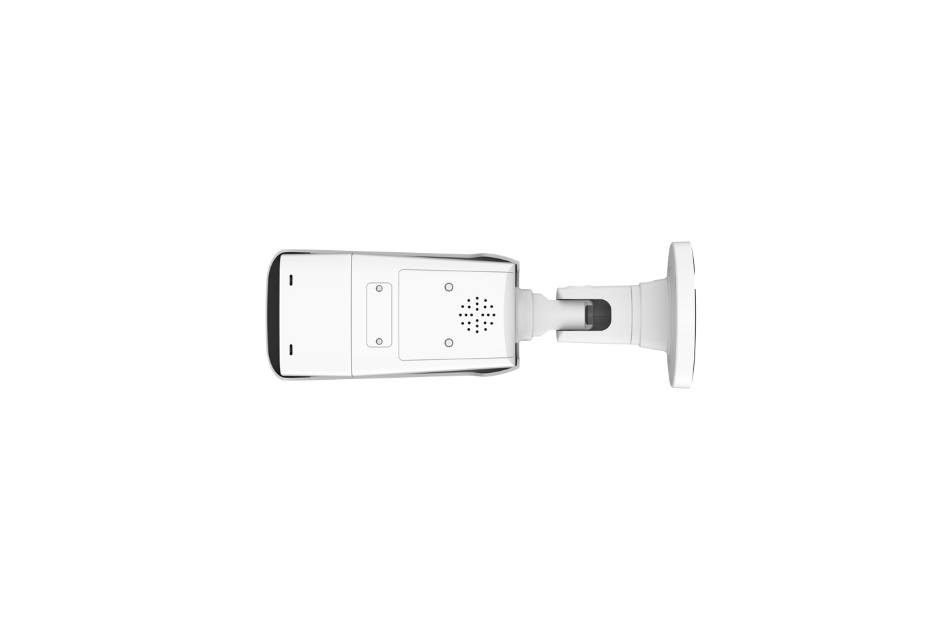

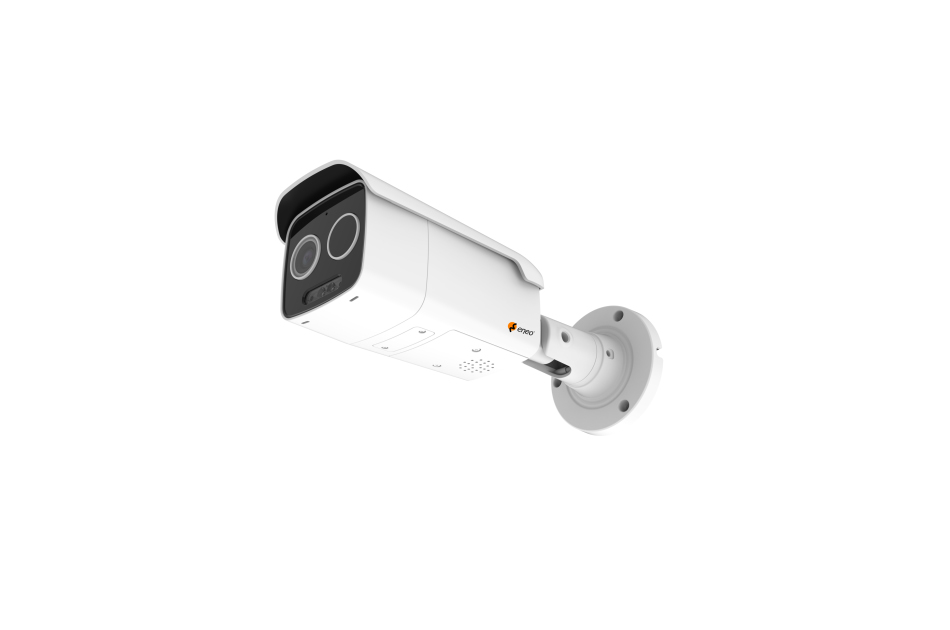

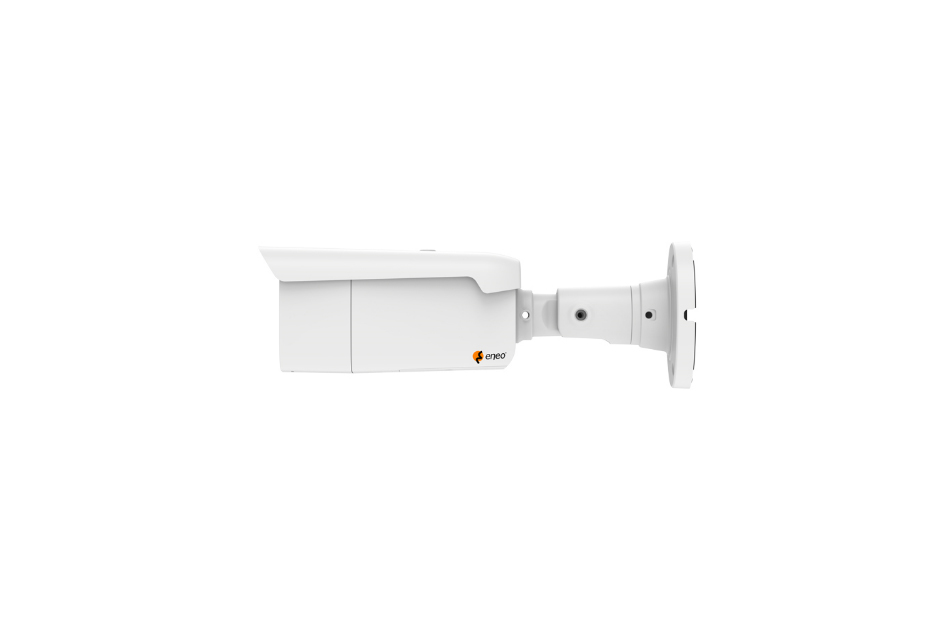

Netzwerk Hybrid Bullet Kamera, Tag/Nacht, 2592x1944 optisch, 256x192 thermisch, IP67, PoE, 12V
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - INT-8SF0003M0A"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 39
- Expectation: 0
- Replacement time: 15 weeks
- Last update: 31.03.2025 - subject to prior sale
Kameratechnik - Bullet Kameras - eneo - INT-8SF0003M0A
Netzwerk Hybrid Bullet Kamera, Tag/Nacht, 2592x1944 optisch, 256x192 thermisch, IP67, PoE, 12V
Hauptmerkmale
- Duale Netzwerk Bullet Kamera
- Optische Auflösung 2592x1944 Pixel
- Thermische Auflösung 256x192 Pixel
- Feste Brennweite 3,6mm (optisch) H:81°, V:57°
- Feste Brennweite 3,2mm (thermisch) H:56°, V:42°
- AI Analysefunktionen inklusive Objektklassifizierung(optisch)
- Temperatur Alarm Messbereich -20°~ +150° (±8°)
- Unterstützt Audio und Alarm Ein- und Ausgänge
- Lokale Speicherung mittels Micro SD Karte
- Unterstützt ONVIF Profile S, G und Profile T
- NDAA-Konformität
- Für den Außeneinsatz geeignet IP67
Specifications
| Dimensions (HxWxD) | 108x91x314,6mm |
| Alarm outputs | yes |
| Alarm inputs | yes |
| Analysis functions | Perimeter Intrusion Detection (PID) |
| Audio | built-in loudspeaker |
| Audio support | yes |
| Resolution pixels | 2560x1944 |
| Resolution standard | 5 Megapixel |
| Imager | CMOS |
| Illumination | Infrared |
| Illumination range | approx. 30m |
| Motion detector | yes |
| Resolution max. | 2592x1944 |
| Image transmission rate max. | 25 fps |
| Horizontal angle of view | 81° |
| Vertical angle of view | 57° |
| Iris control | DC |
| Focal length | 3,2 mm |
| Sensor size | 1/2.7'' |
| Detection range | 421m |
| Digital Noise Reduction (DNR) | yes |
| Ethernet interface | 10Base-T |
| Colour (housing) | RAL9003 |
| Remote configuration | Browser |
| Backlight compensation | BLC |
| Housing | Outdoor |
| Housing material | Aluminium |
| Weight | 1,45kg |
| Heater | no |
| Internal storage | microSDHC card |
| Camera type | Bullet |
| Camera type | Thermal Hybrid Bullet |
| Power consumption | 10,2W |
| Lichtempfindlichkeit | 0,003 Lux @ F1,6 AGC on |
| Low speed shutter | yes |
| MOD (Minimum object distance) | 0,3 m |
| Mounting | Wall mount |
| Lens type | fixed focal length |
| ONVIF | ONVIF Profile G |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66 |
| Series | eneo IN-Series |
| Serial interfaces | Ethernet |
| Supply voltage | 12VDC |
| System | True Day&Night |
| Day&Night switch | ICR |
| Temperature range (operation) | -30°C ~ +60°C |
| Thermische Auflösung | 256x192 |
| Vandalism resistant | no |
| Video outputs | no |
| Compression standard | H.265 |
| Wide Dynamic Range (WDR) | D-WDR |
| Analysis functions | Line Crossing Detection (LCD) |
| Resolution pixels | 256×192 Thermal Modul |
| Illumination | White light |
| Illumination range | Infrared |
| Horizontal angle of view | 56° |
| Vertical angle of view | 42° |
| Focal length | 3,6 mm |
| Ethernet interface | 100Base-TX |
| Colour (housing) | Pantone P 179-1 |
| Backlight compensation | HLC |
| Internal storage | 256GB |
| MOD (Minimum object distance) | 2 m |
| Mounting | Ceiling mount |
| ONVIF | ONVIF Profile S |
| Supply voltage | PoE |
| System | thermal image |
| Compression standard | H.264 |
| Analysis functions | Human (PD) |
| Illumination range | approx. 15m |
| ONVIF | ONVIF Profile T |
| Compression standard | M-JPEG |
| Analysis functions | Vehicle (VD) |
| Illumination range | White Light |
| Analysis functions | Stationary Object Detection (SOD) |
| Analysis functions | Cross Counting (CC) |
| Analysis functions | Crowd Density Detection (CD) |
| Analysis functions | Queue Lenght Detection (QD) |
| Analysis functions | Heat Map (HM) |
| Analysis functions | Rare Sound Detection (RSD) |
| Analysis functions | Face Detection (FD) |
| Analysis functions | Fire detection |
| Analysis functions | Temperature exception alarm |
| Analysis functions | Human (PD Thermal) |
| Analysis functions | Vehicle (VD Thermal) |
| Protection rating | IP67 |
| Internal storage | microSD-Kartenslot |
| Lichtempfindlichkeit | 0,003 Lux @ F1,6 AGC on |
| Thermische Auflösung | 256x192 |
