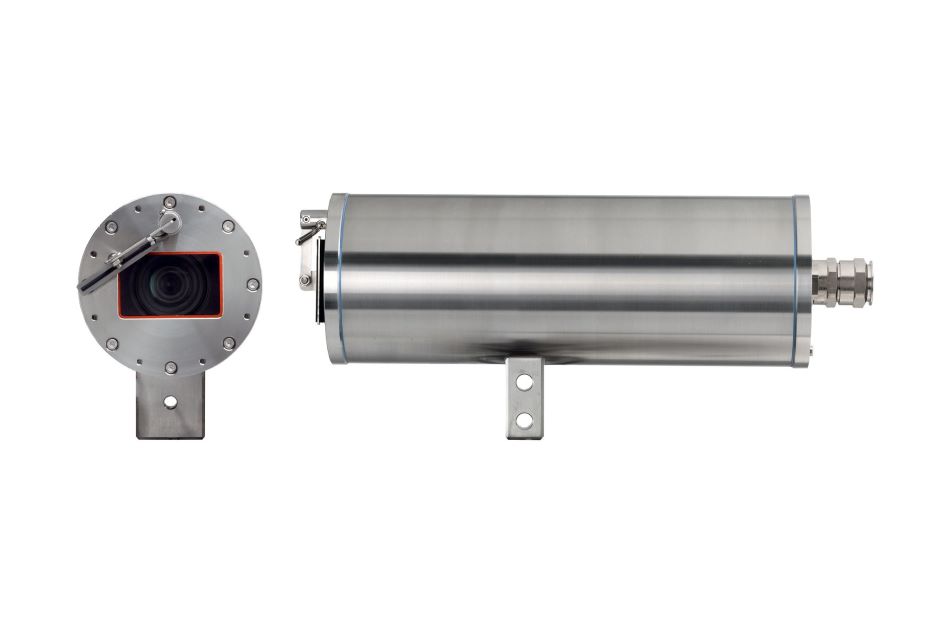

SAMCON - ExCam IPQ1785 T08-VA2.3.K3.BOR2-N.H-005.N-P
Delivery Time 6-7 weeks
Netzwerkkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX) und IECEx, 1080p, 32x optischer Zoom, IP68, -10°C/+60°C
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "SAMCON - ExCam IPQ1785 T08-VA2.3.K3.BOR2-N.H-005.N-P"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 6 weeks
- Last update: 31.03.2025 - subject to prior sale
Kameratechnik - Spezialkameras - Sonstige - SAMCON - ExCam IPQ1785 T08-VA2.3.K3.BOR2-N.H-005.N-P
Netzwerkkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX) und IECEx, 1080p, 32x optischer Zoom, IP68, -10°C/+60°C
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' CMOS Sensor mit 2 MP (1920 x 1080)
- Leistungsstarkes Motor-Zoom-Autofokus-Objektiv (32x optisch)
- Edelstahl AISI 316L
- Zertifiziert für explosionsgefährdete Bereiche nach ATEX, IECEx,INMETRO, EAC-Ex
- Optional leistungsstarke Wischer Lösung mit Drehmomentregelung
- Lightfinder und WDR
- Schutzart IP66/68 (IEC 60529)
- Videokomprimierung H.265
- Made in Germany
Specifications
| Alarm inputs | no |
| Audio support | no |
| Resolution standard | HD 1080p |
| Imager | CMOS |
| Motion detector | yes |
| Resolution max. | 1920x1080 |
| Image transmission rate max. | 30 fps |
| Horizontal angle of view | 60 - 2,3° |
| Focal length | 4,3 - 137 mm |
| Sensor size | 1/2.8'' |
| Digital zoom | no |
| Digital Noise Reduction (DNR) | yes |
| Colour (housing) | Edelstahl |
| Backlight compensation | no |
| Housing | Explosionsgeschützt |
| Housing material | Stainless steel |
| Heater | no |
| Internal storage | microSD-Kartenslot |
| Camera type | Explosionsgeschützt |
| Lichtempfindlichkeit | 0,16 Lux bei 50 IRE F1.4 |
| Low speed shutter | yes |
| Lens type | auto focus zoom |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66/68 |
| Series | ExCam |
| Serial interfaces | Ethernet |
| Supply voltage | PoE |
| System | True Day&Night |
| Day&Night switch | ICR |
| Temperature range (operation) | -30°C ~ +60°C |
| Video outputs | no |
| Compression standard | H.264 |
| Wide Dynamic Range (WDR) | 120dB |
| Certificates | ATEX |
| ONVIF | ONVIF Profile G |
| Power over Ethernet | IEEE 802.3at |
| Compression standard | M-JPEG |
| Certificates | IECEx |
| ONVIF | ONVIF Profile T |
| Compression standard | Axis Zipstream |
| Certificates | EACex |
| Certificates | INMETRO |
| Certificates | MASC |
| Certificates | UKEX |
| Lichtempfindlichkeit | 0,16 Lux bei 50 IRE F1.4 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Alarm inputs | no |
| Audio support | no |
| Resolution standard | HD 1080p |
| Imager | CMOS |
| Motion detector | yes |
| Resolution max. | 1920x1080 |
| Image transmission rate max. | 30 fps |
| Horizontal angle of view | 60 - 2,3° |
| Focal length | 4,3 - 137 mm |
| Sensor size | 1/2.8'' |
| Digital zoom | no |
| Digital Noise Reduction (DNR) | yes |
| Colour (housing) | Edelstahl |
| Backlight compensation | no |
| Housing | Explosionsgeschützt |
| Housing material | Stainless steel |
| Heater | no |
| Internal storage | microSD-Kartenslot |
| Camera type | Explosionsgeschützt |
| Lichtempfindlichkeit | 0,16 Lux bei 50 IRE F1.4 |
| Low speed shutter | yes |
| Lens type | auto focus zoom |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66/68 |
| Series | ExCam |
| Serial interfaces | Ethernet |
| Supply voltage | PoE |
| System | True Day&Night |
| Day&Night switch | ICR |
| Temperature range (operation) | -30°C ~ +60°C |
| Video outputs | no |
| Compression standard | H.264 |
| Wide Dynamic Range (WDR) | 120dB |
| Certificates | ATEX |
| ONVIF | ONVIF Profile G |
| Power over Ethernet | IEEE 802.3at |
| Compression standard | M-JPEG |
| Certificates | IECEx |
| ONVIF | ONVIF Profile T |
| Compression standard | Axis Zipstream |
| Certificates | EACex |
| Certificates | INMETRO |
| Certificates | MASC |
| Certificates | UKEX |
| Lichtempfindlichkeit | 0,16 Lux bei 50 IRE F1.4 |
| Manufacturers sheet | Download PDF-document |
