SALTO - XS4 Original+ escutcheon - Configurator
Delivery Time 4-5 weeks
The new electronic SALTO XS4 Original+ door fitting was specially developed for doors and mortise locks according to European standards.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE - ID technology: MIFARE/DESFire EV3/EV2/EV1, Classic, Ultralight C und Plus. Supported JustIN Mobile, SALTO Wireless BLUEnet, JustIN Mobile HCE (Android) and communication with PPD800, Bluetooth (BLE), HSE, Near Field Communication (NFC). | 0,00 |
|
|
|
|
SALTO KS - ID technology: MIFARE/DESFire EV2, Bluetooth (BLE), HSE | 0,00 |
|
|
|
|
SALTO Homelok - ID technology: MIFARE/DESFire EV2, Bluetooth (BLE), HSE | 0,00 |
|
-
SALTO - XS4 Original+ escutcheon - Configurator691,58 €
Product information "SALTO - XS4 Original+ escutcheon - Configurator"

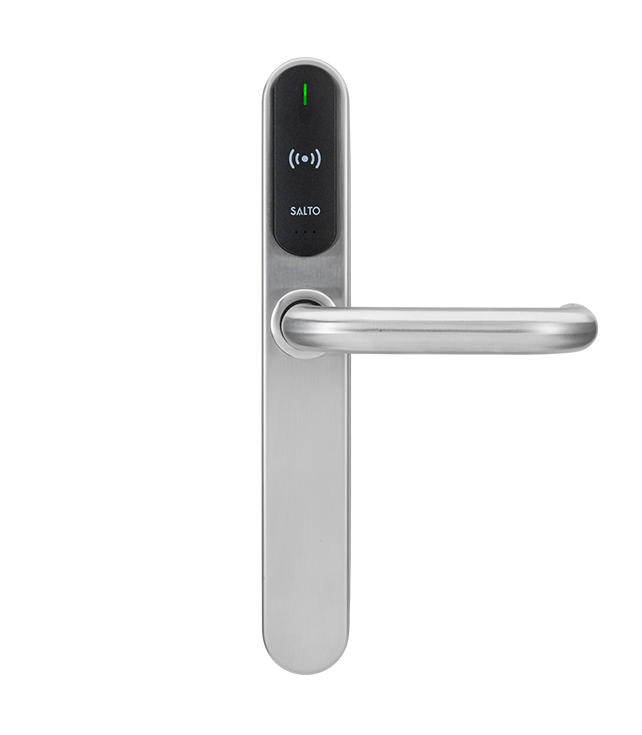

The SALTO - XS4 Original+ escutcheon was specially developed for doors and mortise locks according to European standards. The escutcheon is easy to install – both in existing buildings and new construction projects. It is available in a variety of models, with different finishes, and is compatible with a wide range of door handles. The XS4 Original+ Euro is suitable for use in the SALTO Virtual Network (SVN), with SALTO Wireless BLUEnet radio networking, JustIN Mobile for digital keys, as well as with SALTO KS and SALTO Homelok.
Key Features:
- Easy installation on solid and profiled doors made of wood, steel, PVC, and aluminum.
- Escutcheon body and cover made of stainless steel.
- Optionally with a hole for mechanical opening with a protocol function.
- Mechanical or electronic "Do Not Disturb" function available.
- The door can always be opened from the inside (anti-panic function in conjunction with an appropriate mortise lock according to EN 179/1125).
- Complementary fitting without a reading head is available for a uniform appearance on doors without access control.
Technical specifications
- for door thicknesses from 32 to 120 mm.
- dimensions:
- Narrow: 282.0 x 40.0 x 20.0 mm (H x W x D)
- Wide: 290.0 x 67.0 x 20.0 mm (H x W x D)
- DIN: 284.0 x 57.0 x 22.0 mm (H x W x D)
- left or right handle direction
- coupling mechanism with freely movable handle, electrically engageable
- door handle rotation angle: 33º
- handle/cylinder distance: 47 to 110 mm
- compatible with DIN mortise locks, European and narrow mortise locks
- compatible with European profile cylinders and Swiss round cylinders
- square pins: 8mm, 8mm split, 9mm and 9mm split
Technologies
- SALTO Space
- SVN data on card
- Wireless (SALTO BLUEnet)
- SVN FLEX
- SALTO KS
- Wireless (SALTO BLUEnet)
- SALTO Homelok
Identification media
- SALTO Justin Mobile Credentials: Mobile Key Bluetooth and Near Field Communication (NFC) capability
- NXP MIFARE®: MIFARE® DESFire® EV1/EV2/ EV3, MIFARE® Plus, MIFARE® Ultralight C, MIFARE® Classic
CORE TECHNOLOGIES
- Salto Native Bluetooth LE wireless connectivity
- Hardware secure element
Login
- for door thicknesses from 32 to 120 mm
- dimensions:
- Narrow: 282.0 x 40.0 x 20.0 mm (H x W x D)
- Wide: 290.0 x 67.0 x 20.0 mm (H x W x D)
- DIN: 284.0 x 57.0 x 22.0 mm (H x W x D)
- left or right handle opening
- coupling mechanism with freely movable handle, electrically engageable
- door handle rotation angle: 33º
- Handle/cylinder distance: 47 to 110 mm
- compatible with DIN mortise locks, European, and narrow mortise locks
- compatible with European profile cylinders and Swiss round cylinders
- square spindles: 8 mm, 8 mm split, 9 mm, and 9 mm split
- batteries: 3 AAA batteries (LR03 1.5 V)
- number of openings with one set of batteries: 40,000 to 60,000
- logging: max. 2,000 events (depending on programming type, can be disabled)
- external temperature range: -35 to +60°C, non-condensing
inner temperature range: -5 to +50°C non-condensing optional: -35 to +60°C - IP class: For indoor use, optional IP55 (external plate)
- certifications: CE, AbZ 6), EN 179 6), EN 1634 6), UL-10C 7), DDA 8)
Other
Compatible with DIN, Euro, and narrow mortise locks. Suitable for mortise locks with a different spindle angle of max. 4°. Fitting body and cover made of stainless steel. Opening from the inside is always possible (anti-panic function optionally available in conjunction with a mortise lock according to EN 179 6). Includes door status detector in the wireless version. All communication with the EM4xx is encrypted. Emergency opening with a portable programming device (PPD) or emergency power supply EPS100.
