SALTO - XS4 Original+/Original complementary escutcheon - wide - Configurator
Delivery Time 3-4 weeks
The wide XS4 Original/Original+ complementary eschutcheon, without electronics, 2 handles, any type, is designed to fit most European profile doors and...
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
XS4 Original+/Original complementary escutcheon | E | 0,00 |
|
-
SALTO - XS4 Original+/Original complementary escutcheon - wide - Configurator183,08 €
Product information "SALTO - XS4 Original+/Original complementary escutcheon - wide - Configurator"

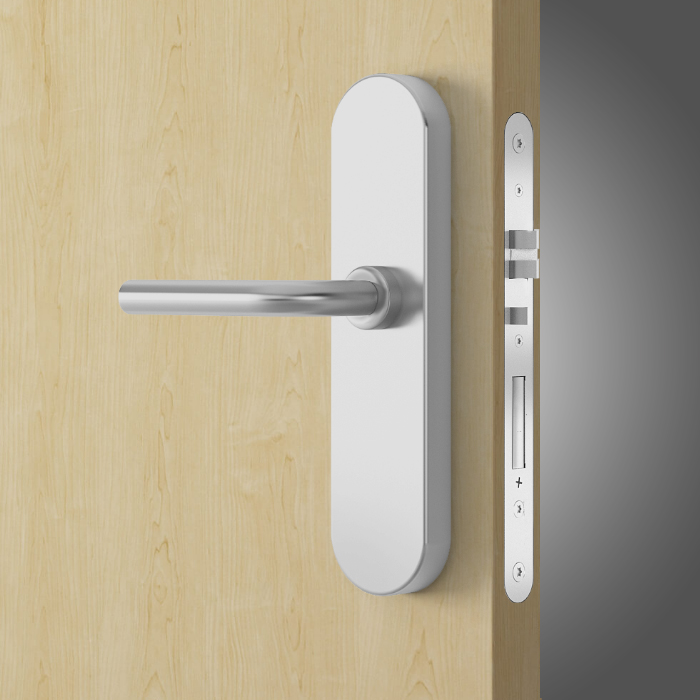

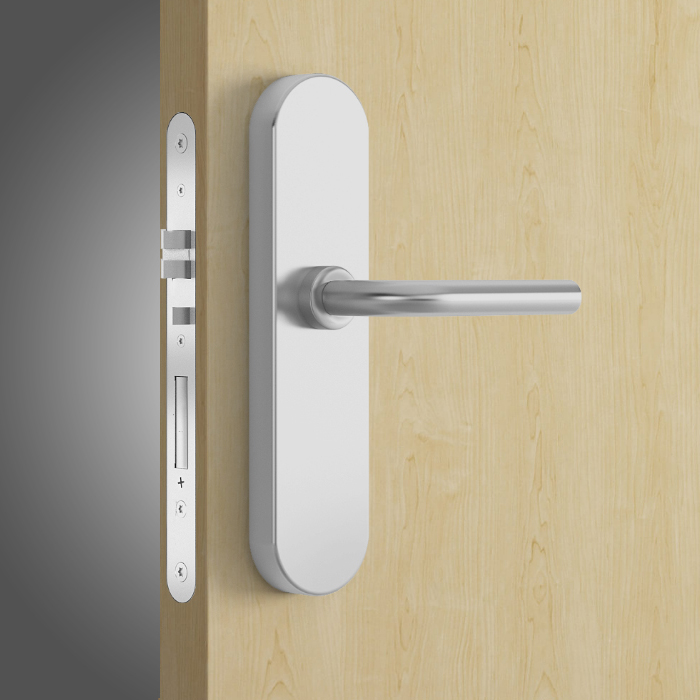

The SALTO - XS4 Original/Original+ complementary eschutcheon - wide without electronics, 2 handles, any type, is designed to fit most European profile doors and mortise locks standards. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions.
Login
- Covers door thicknesses: From 32mm up to 120mm.
- Dimensions: 290mm x 67mm x 20mm.
- Distance from the handle to the cylinder: 47mm to 110mm.
- Square spindles available: 7mm, 8mm, 9mm

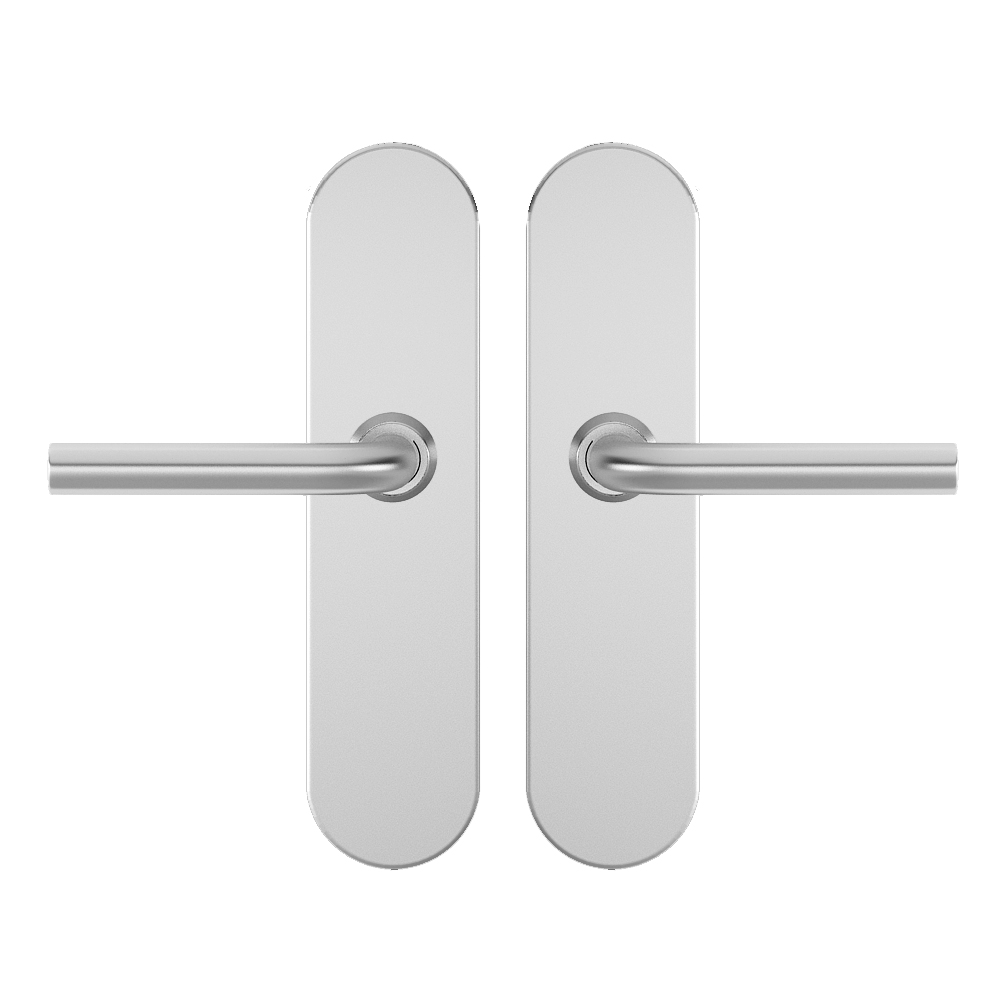

- Reversible handle left or right escutcheon.
- Clutch mechanism escutcheon; when unlocked handle moves freely.
- Handle rotation: 33º.
- Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder
- Compatible with European profile and Swiss profile cylinders.
