SALTO - XS4 One complementary escutcheon - Configurator
Delivery Time 3-4 weeks
The XS4 One complementary escutcheon with 2 handles without electronics is compatible with DIN, Euro and narrow mortise locks.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
XS One complementary escutcheon | E | 0,00 |
|
-
SALTO - XS4 One complementary escutcheon - Configurator166,13 €
Product information "SALTO - XS4 One complementary escutcheon - Configurator"

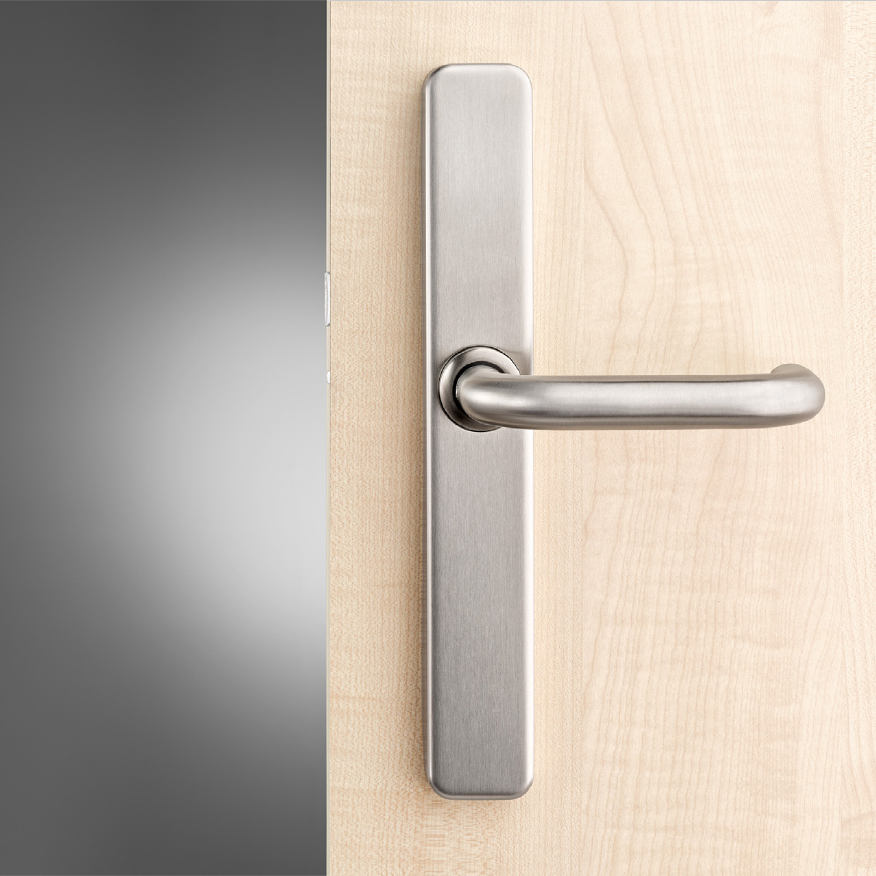

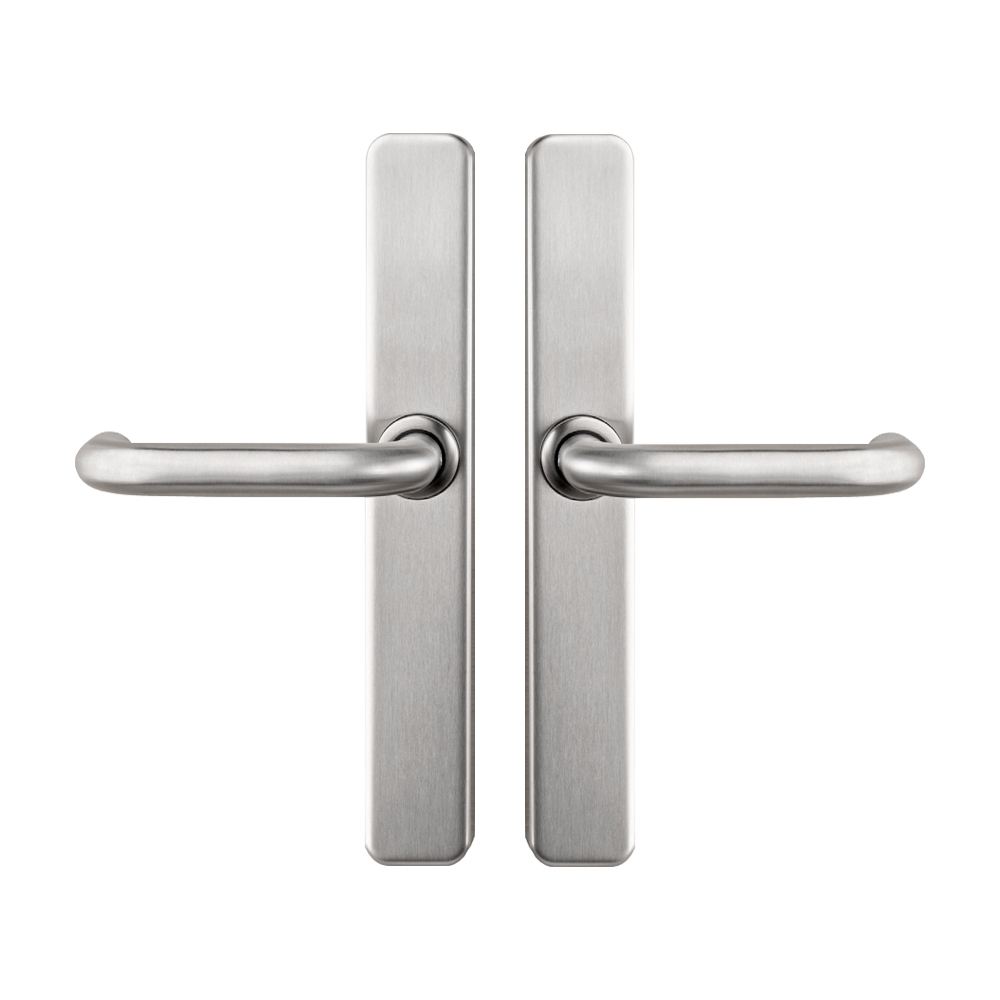

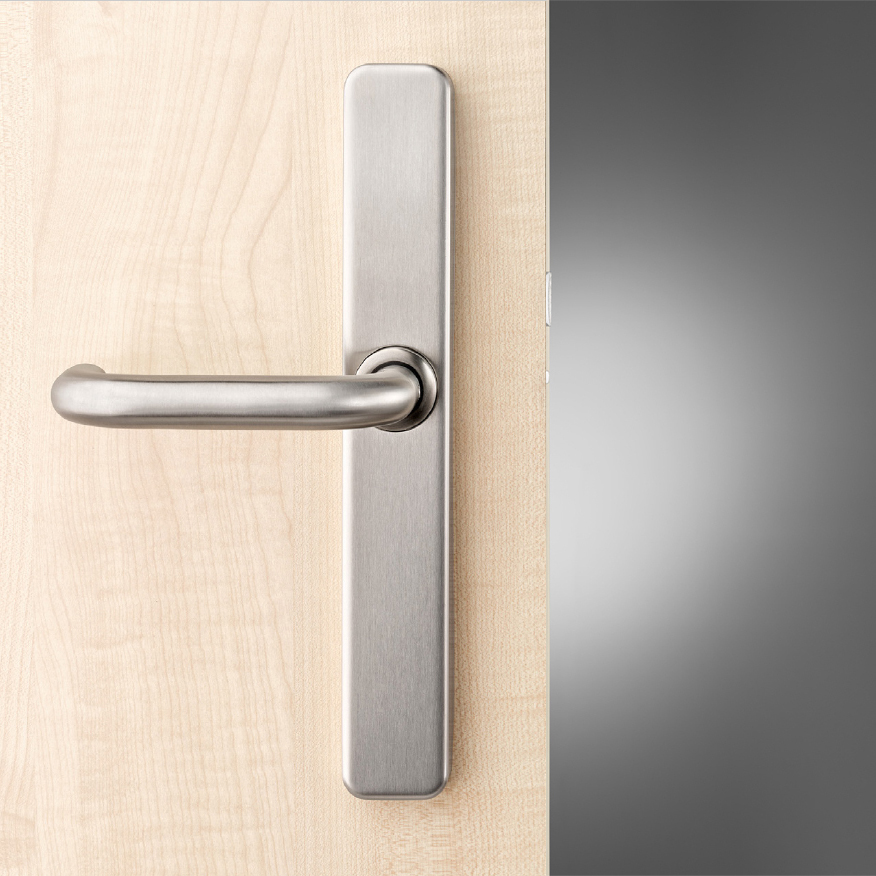

The SALTO - XS4 One complementary escutcheon with 2 handles without electronics is compatible with DIN, Euro and narrow mortise locks. For mortise locks with a different angular position of the follower of max. 4 ° suitable.Fitting body and cover made of stainless steel. Opening from the inside always possible (anti-panic function in connection with mortise lock according to EN 179 optionally possible)
The XS4 One electronic escutcheon is a revolutionary stand-alone lock thanks largely to the level of technology packed inside that brings together the convenience of an offline point -- easy installation and no wires with virtually the same kind of power and performance of an online point. Its top quality stainless steel construction and Mifare-DESFire and BLE (Bluetooth Low Energy) technologies allow it to work with conventional smartcards and/or via SALTOs JustIN Mobile app.
The SALTO XS4 One is the evolution of the Original model with a built-in, totally new reader available in two colours. This version is compatible with most European mortise locks and cylinders. The XS4 ONE's easy-to-install design makes it simple for security professionals to upgrade security and replace mechanical-key-operated door locks with the latest electronic access control solution suitable for a wide range of customer applications.
Login

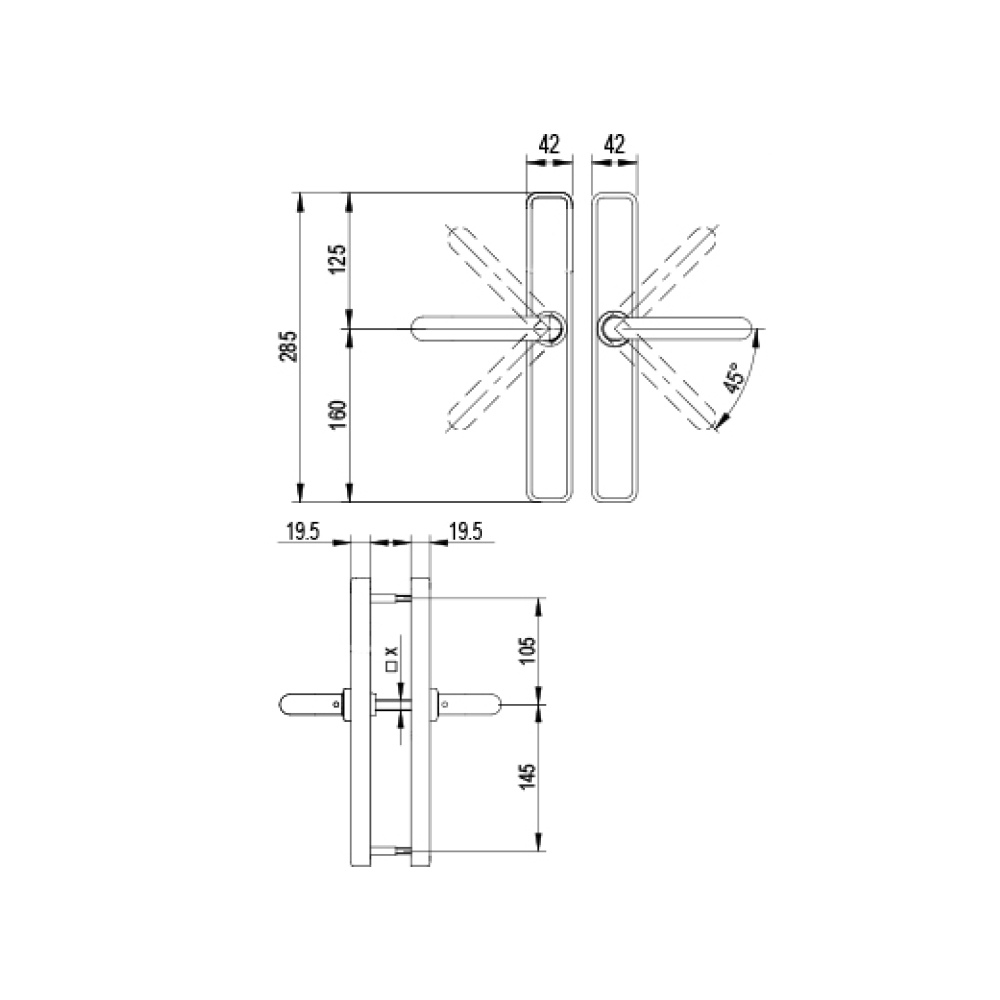

- covers door thicknesses: From 32 mm up to 120 mm
- dimensions: 285,0 mm x 42,0 mm x 19,5 mm (L x W x D)
- reversible handle left or right escutcheon
- handle rotation: 45º
- distance from the handle to the cylinder: 47mm to 110mm
- compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock
- compatible with European profile and Swiss profile cylinders
- square spindles available: 7mm, 8mm, 9mm
