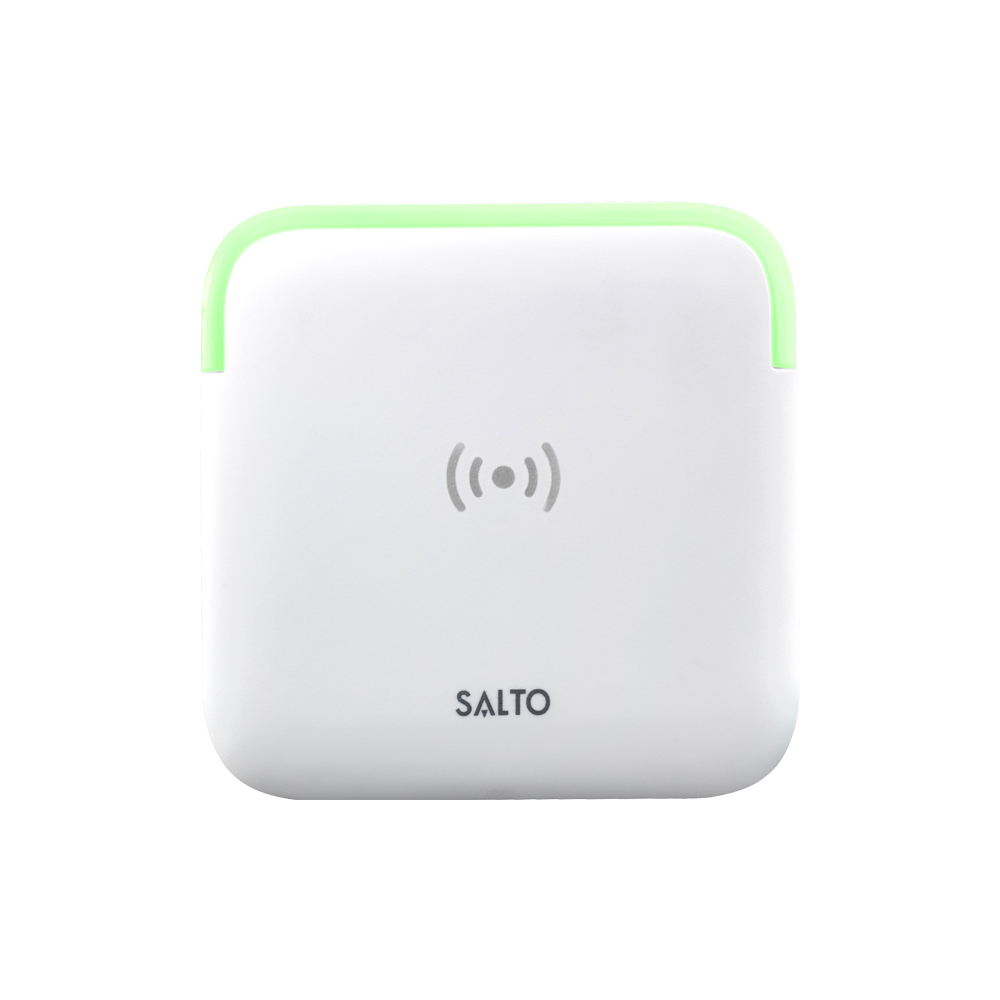

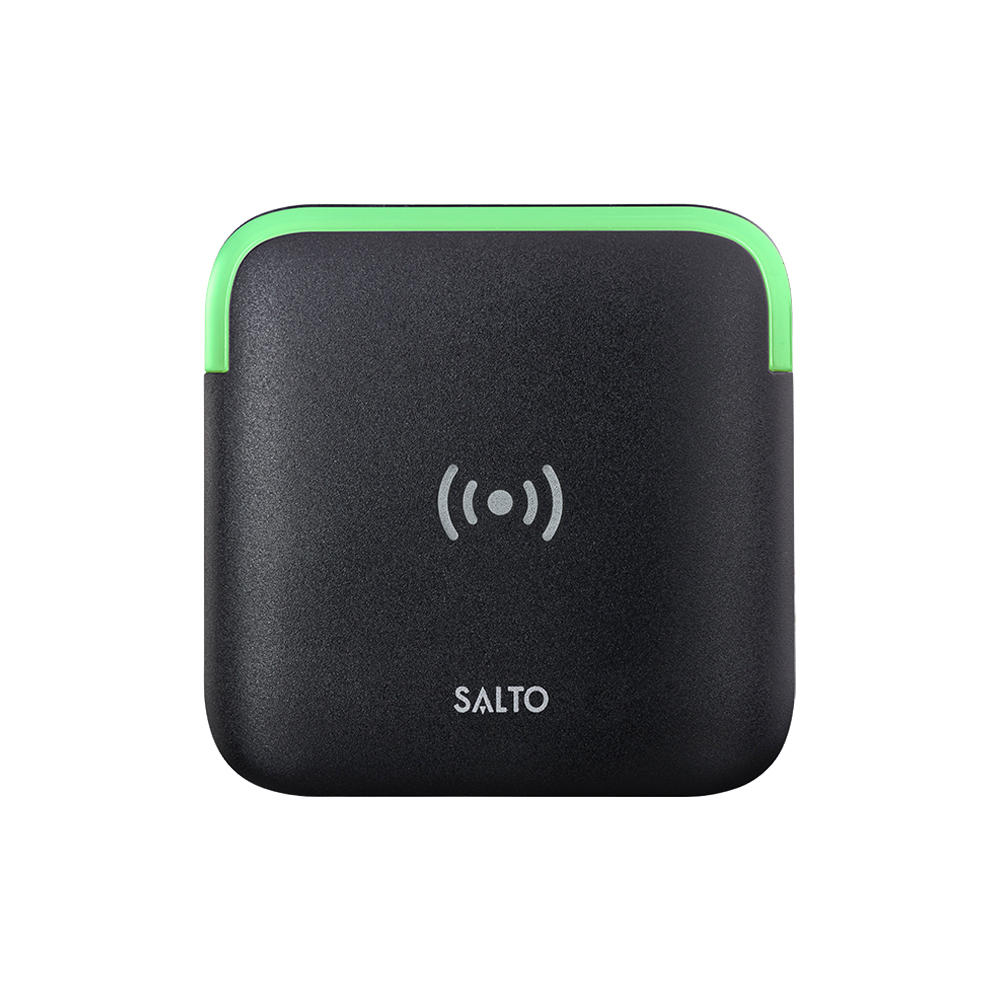

SALTO - XS4 2.0 wall reader Proximity422,07 €
The SALTO - XS4 2.0 wall reader fits seamlessly into the new design of the XS4 2.0 product line and also offers a variety of features. Together with the XS4 2.0 controller, it can be controlled via the management software SALTO ProAccess SPACE. The square model is specially designed for European installation boxes.
Key Features
- Modern design with intuitive LED signaling.
- Compatible with Euro standard flush-mounted boxes.
- Complete integration into the XS4 system platform.
- For use in SALTO Virtual Network (SVN)
- Acoustic and optical signaling.
- Concealed fixing screws.
- Suitable for flush mounting.
Technical specifications

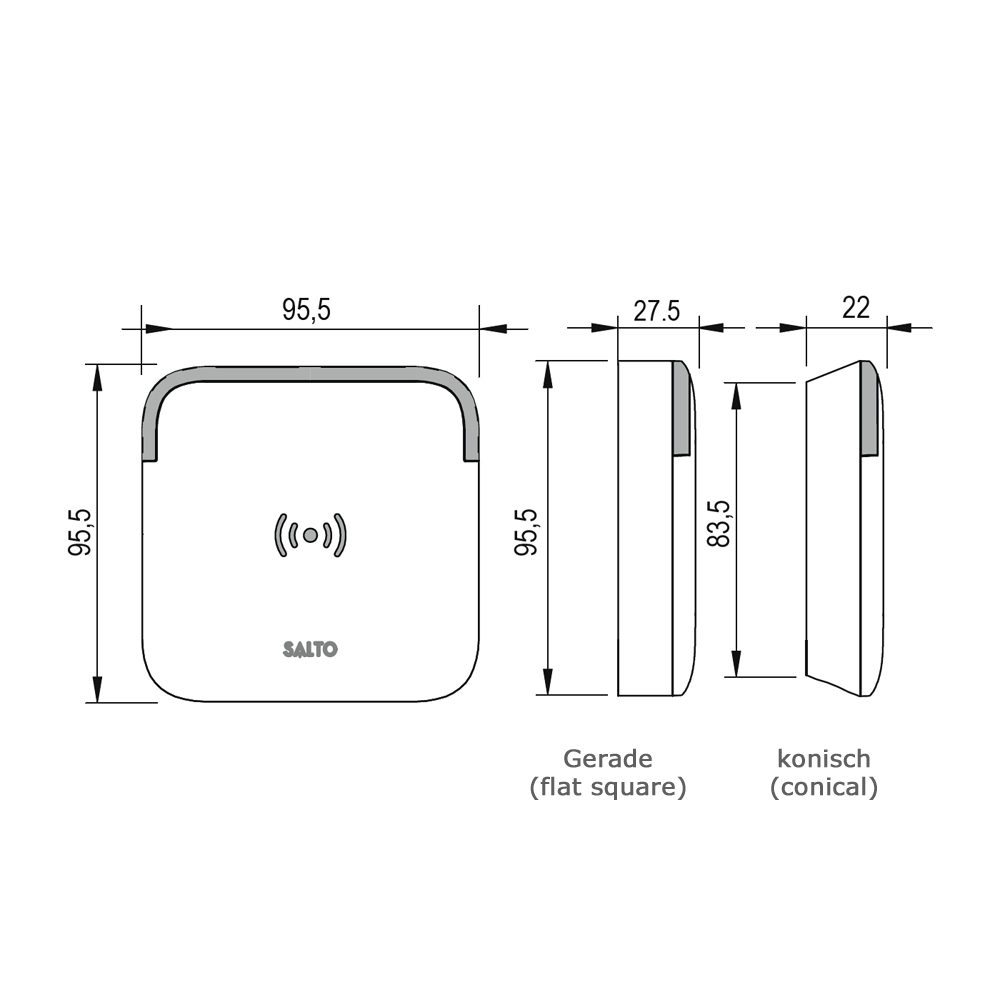

- Dimensions: 95.5 x 95.5 x 22 mm (H x W x D)

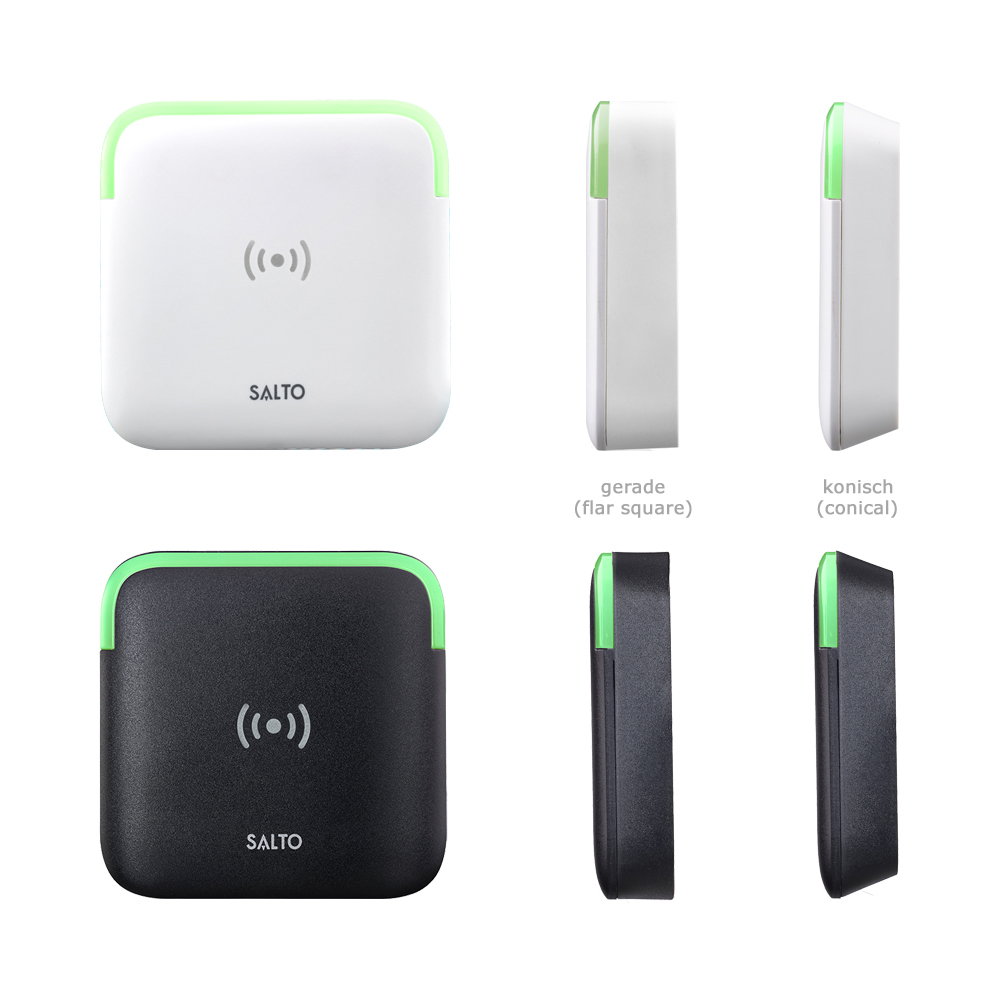

- Square design, conical or straight tapered on the back.
- For use with the XS4 2.0 controllers (CU42xxx)
- Connection door control: 4 cores twisted pair cable.
- Max. Cable length between controller and wall scanner is 250 m, dep. from the cable used.
- Sabotage contact to report when the wall scanner is opened.
- Reading range 35 to 50 mm, dep. from the RFID process.
ID procedures
- MIFAREc (DESFire EV1, Plus, Ultralight C, Classic - ISO / IEC 14443).
- HID iCLASS
- Bluetooth SMART (BLE).
- NFC.
Login
- Abmessungen (H x B x T): 95,5 x 95,5 x 22,0 mm
- quadratische Bauform, auf der Rückseite konisch oder gerade zulaufend
- zur Verwendung mit den XS4 2.0 Steuerungen (CU42xxx) und SALTO KS Steuerungen (CU41xx)
- Anschluss Türsteuerung: 4 Adern Twisted-Pair-Kabel
- max. Kabellänge zwischen Steuerung und Wandleser beträgt 250 m, abh. vom verwendeten Kabel
- Sabotagekontakt, um zu melden, wenn der Wandleser geöffnet wird
- Lesereichweite 35 bis 50 mm, abh. vom RFID-Verfahren
- Schutzklasse IP66
- Umgebungsbedingungen: Temperatur -30 °C bis +65 °C, Luftfeuchtigkeit 35% bis 85%
- Stromversorgung erfolgt über die verbundene Steuerung
