SALTO - XS4 2.0 Panel reader module Proximity
Delivery Time 3-4 weeks

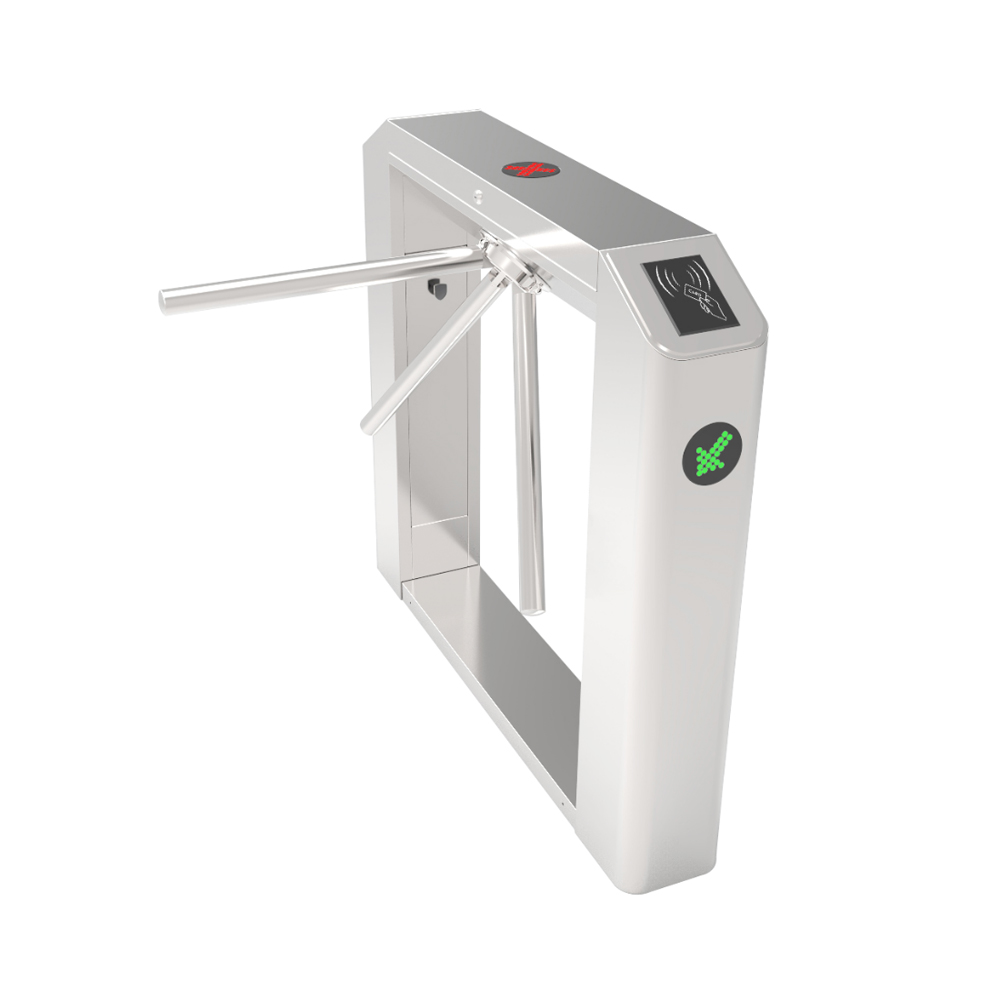

Designed to be integrated behind lift panels, door intercoms, electric switches or turnstiles & gates for MIFARE/DESFire and HID iCLASS.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE | 0,00 |
|
|
|
|
SALTO KS | 0,00 |
|
|
|
|
SALTO Homelok | 0,00 |
|
-
SALTO - XS4 2.0 Panel reader module Proximity422,07 €

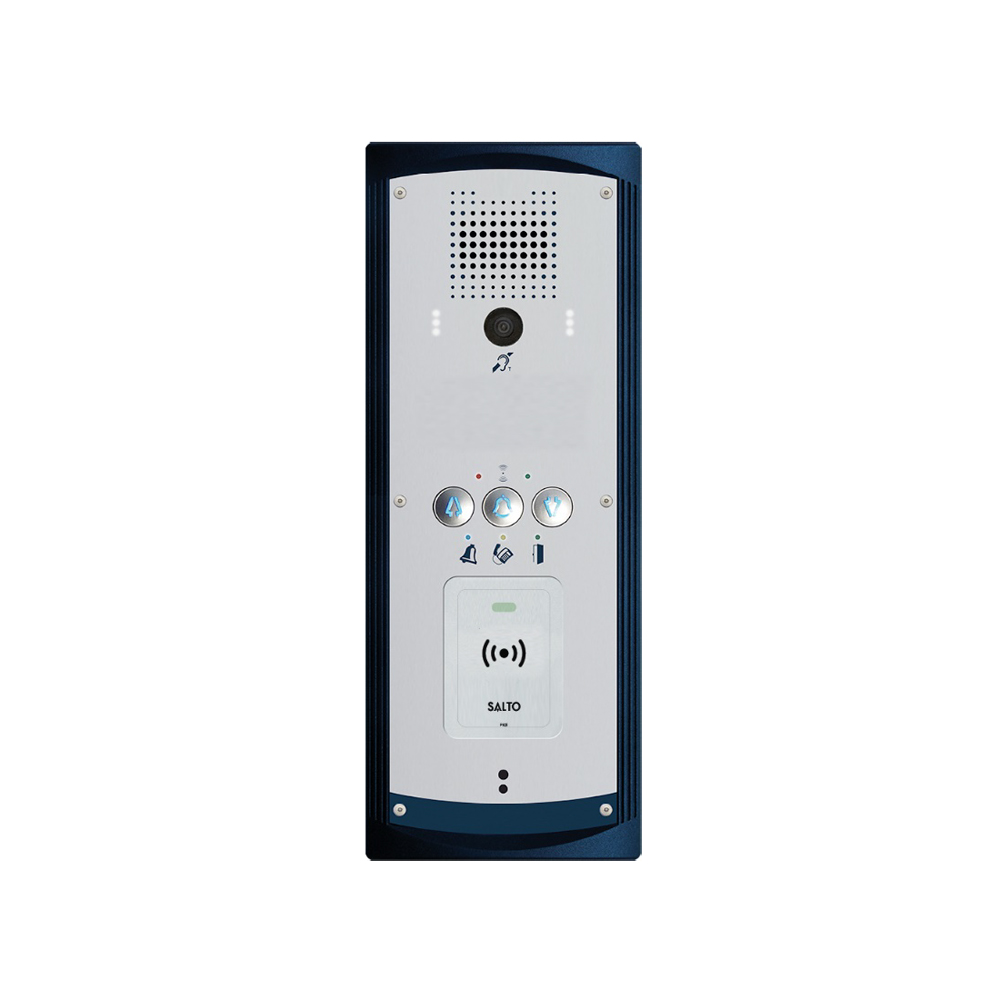

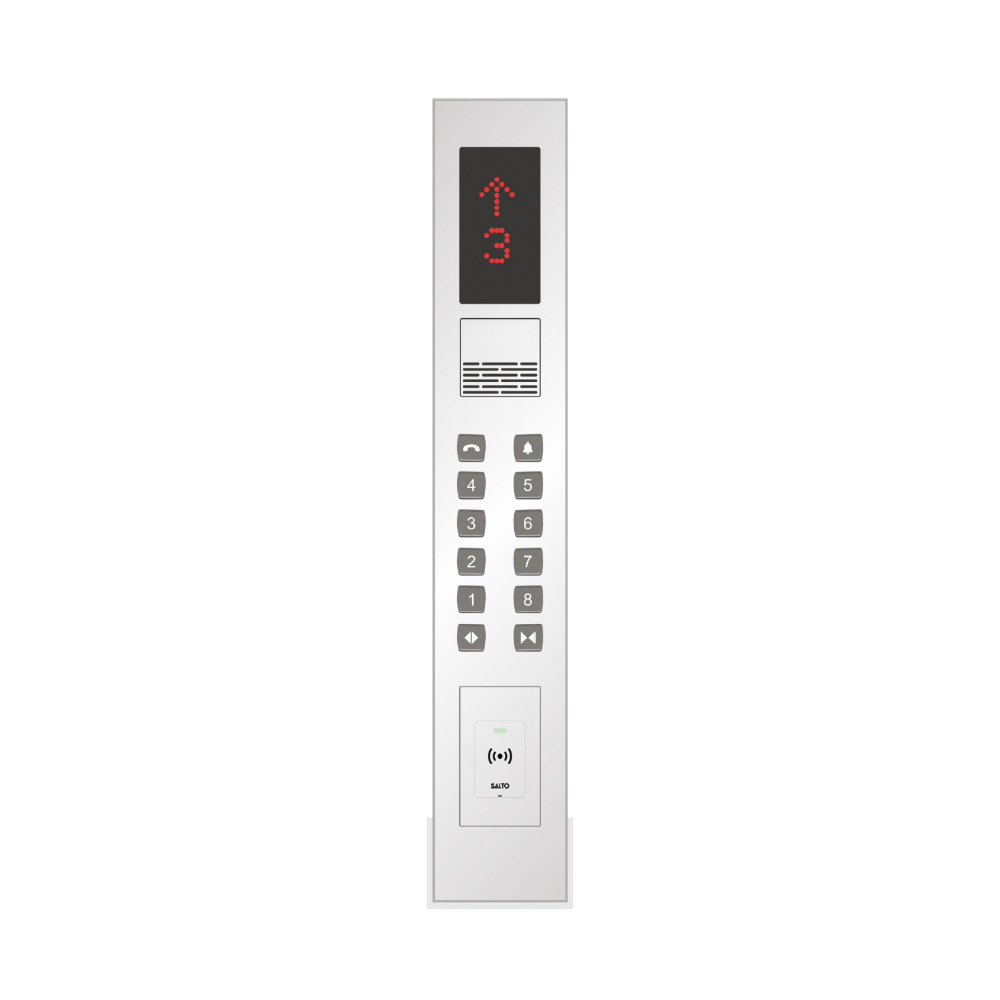

The SALTO - XS4 2.0 Panel reader module Proximity has been specially developed for flush or built-in installations. Typical application areas are elevator panels and separation systems as well as switch programs and door communication systems, for example the Gira System 55 and corresponding programs from Berker, Merten, JUNG etc. as well as Siedle Vario, Gira TX44, Behnke, Ritto etc. The reader's electronics are also weatherproof housed, molded housing. The wall scanner module is also equipped with an LED signaling that indicates whether a user has access or not.
MAIN FEATURES

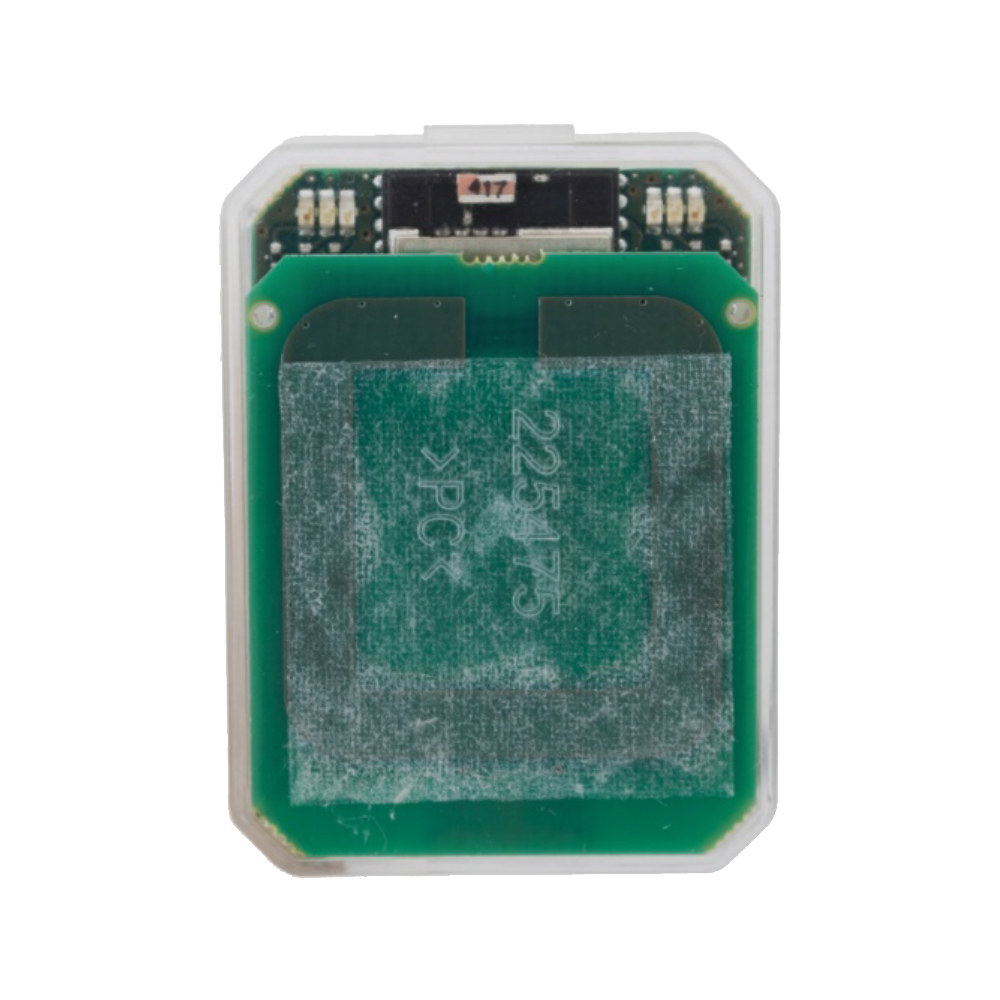

- Compact reader module reader.
- Specially designed to be integrated behind lifts panels, door intercoms, electric switches,….
- Two stickers & labels are available for visible signage.
- Reader is housed in a one piece, weatherproof secure electronics potted enclosure.
- Fully integrated with the SALTO XS4 platform.
- Virtual network capable through SALTO SVN data-on-card technology.
- Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
- Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
TECHNICAL CHARACTERISTICS:
- To be used in combination with XS4 2.0 controllers (CU42xxx).
- Maximum distance the door controller and the wall reader 400m using a twisted pair cable.
- Connection to the door controller: 4 wires.
- Designed to work with an online SVN access control platform, or with a stand-alone system.
- Includes tamper to monitor if the wall reader has been opened.
- Reading distance from 35 to 50mm depending on the RFID technology.
OPENING MODES:
- Opening through key card or smartphone.
PLATFORMS
- SALTO Virtual Network (SVN) data-on-card
- JustIN Mobile: Bluetooth SMART (BLE)
ID TECHNOLOGIES
- MIFARE® (DESFire EV1, Plus, Ultralight C, Classic - ISO/IEC 14443)
- HID-iCLASS
- Bluetooth SMART (BLE)
- NFC.
