SALTO - Wireless-Repeater BLUEnet
Delivery Time 3-4 weeks
Repeater 3 for the wireless connection of the SALTO Gateway3 and the SALTO wireless hardware via the BLUEnet radio network.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE | 0,00 |
|
|
|
|
SALTO KS | 0,00 |
|
|
|
|
SALTO Homelok | 0,00 |
|
-
SALTO - Wireless-Repeater BLUEnet98,13 €
Product information "SALTO - Wireless-Repeater BLUEnet"
The SALTO - Wireless-Repeater 3 BLUEnet - REPEATER03xEU is a bridge the gateway and the BLUEnet escutcheons or BLUEnet cylinders. It permits to expand the quantity of networked devices and to increase the number of BLUEnet access points. Based on SALTO BLUEnet wireless communication, the SALTO BLUEnet Repeater does not need to be wired.
Main features
- compatible with SALTO BLUEnet wireless network
- Wireless radio frequency based on Bluetooth Low Energy
- AES 128bits encryption
- connection to the GATEWAY03 by SALTO BLUEnet wireless connection
- powered by 12V power supply adaptor
- can manage up to 16 wireless locks
- can manage up to 6 additional repeater
- Firmware update via software through Ethernet connection
Important notes
- Nodes cannot be placed after a repeater.

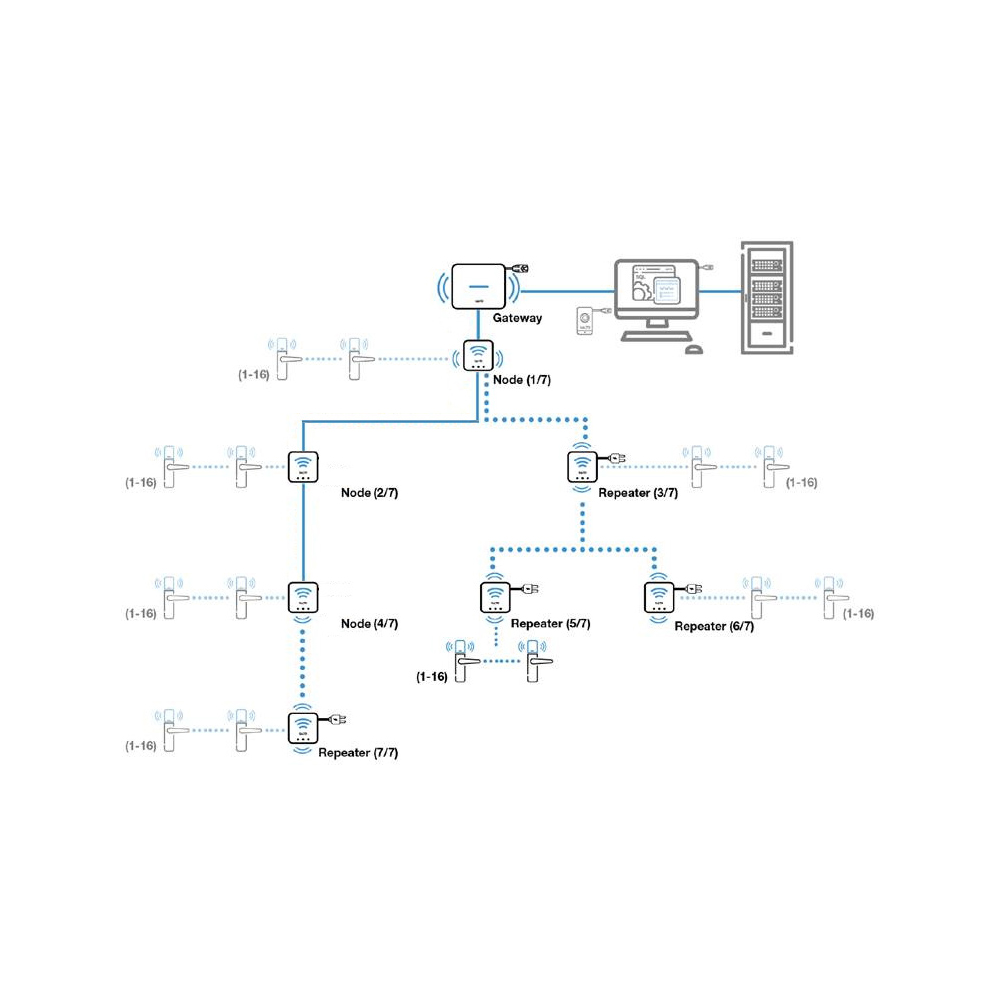

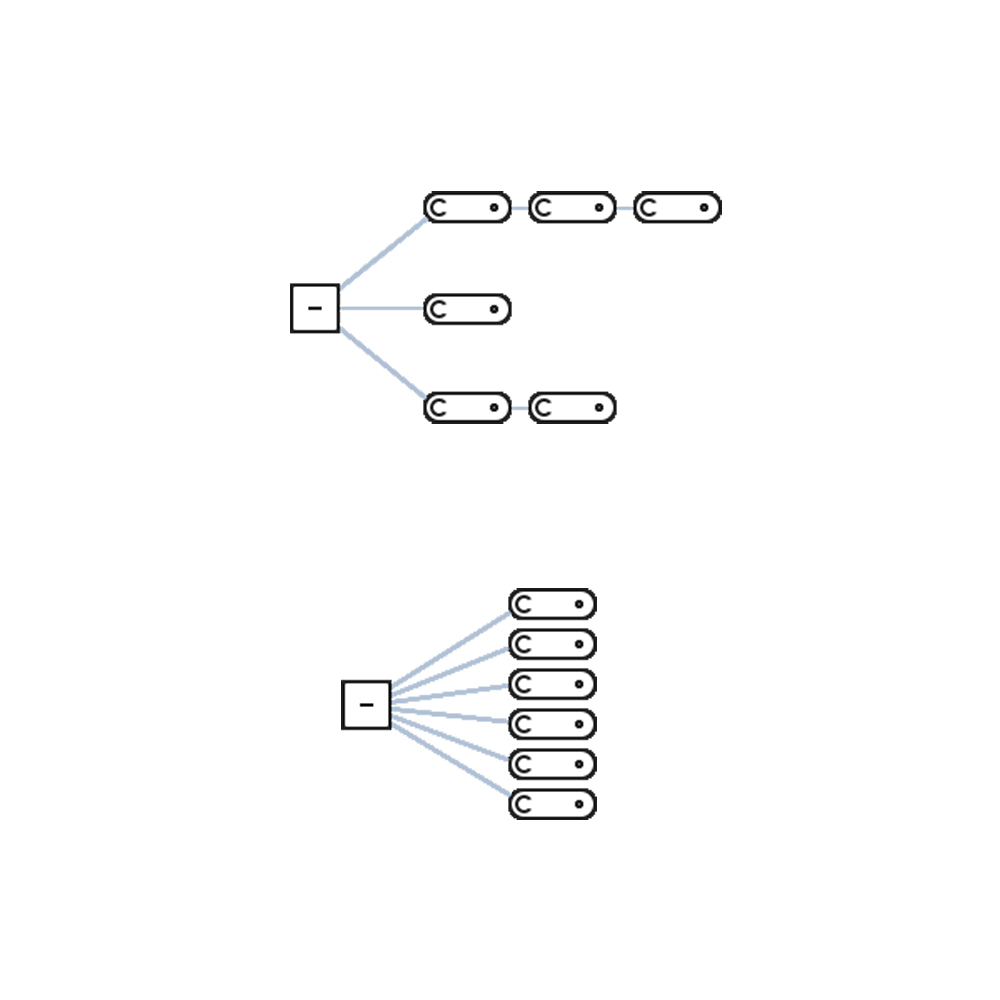

- The repeater is connected to a node or a repeater via Bluetooth. A maximum of 6 repeaters in a maximum of 2 lines are possible under a gateway / node (nesting depth max. 3 repeaters per line).
- Max. 16 BLUEnet access components per repeater / node, of which a maximum of 2 SVN-Flex update points.
Login
- Operation conditions
- Temperature: Min -20º - Max 70º (without condensation)
- Humidity: Min 35% - Max 85%
- SALTO BLUEnet characteristics:
- Frequency Range: 2400-2483,5 Mhz
- RF Standard: Bluetooth Low Energy
- Indoor Radio Range: 10/15m
- Max output power: 8dBm
- Auxiliary Power Supply:
- Input voltage: 7V (Min.) - 28V (max)
- Current consumption: 75mA
