SALTO - Wireless-Node 3 BLUEnet
Delivery Time 3-4 weeks
Node 3 for the connection between the gateway and the wireless door components in SALTO BLUEnet.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE | 0,00 |
|
-
SALTO - Wireless-Node 3 BLUEnet98,13 €
Product information "SALTO - Wireless-Node 3 BLUEnet"
The SALTO - Wireless-Node 3 BLUEnet - RFNODE3 is a bridge the gateway and the escutcheons or cylinders, where the distance to the escutcheon or where the number of escutcheons that must be linked to the gateway exceeds what is possible with a single gateway. It also permits to combine in a same property wireless electronic escutcheons or cylinders that belongs to SALTO RFnet or SALTO BLUEnet wireless networks as the RFNODE3 can be connected to a GATEWAYx2C (RFnet) or GATEWAYx3C (SALTO BLUEnet).
Up to 16 SALTO BLUEnet compatible access components can be connected to an RFNode3. All communication with the RFNode3 is AES 128-bit encrypted. Firmware update via SALTO ProAccess SPACE software via gateway and Ethernet connection.
Main features
- compatible with SALTO BLUEnet wireless network
- Wireless radio frequency based on Bluetooth Low Energy
- AES 128bits encryption
- Connection to the GATEWAY02 or GATEWAY03 by BUS 485
- powered by the GATEWAY
- can manage up to 16 wireless locks
- Firmware update via software through Ethernet connection
Important notes

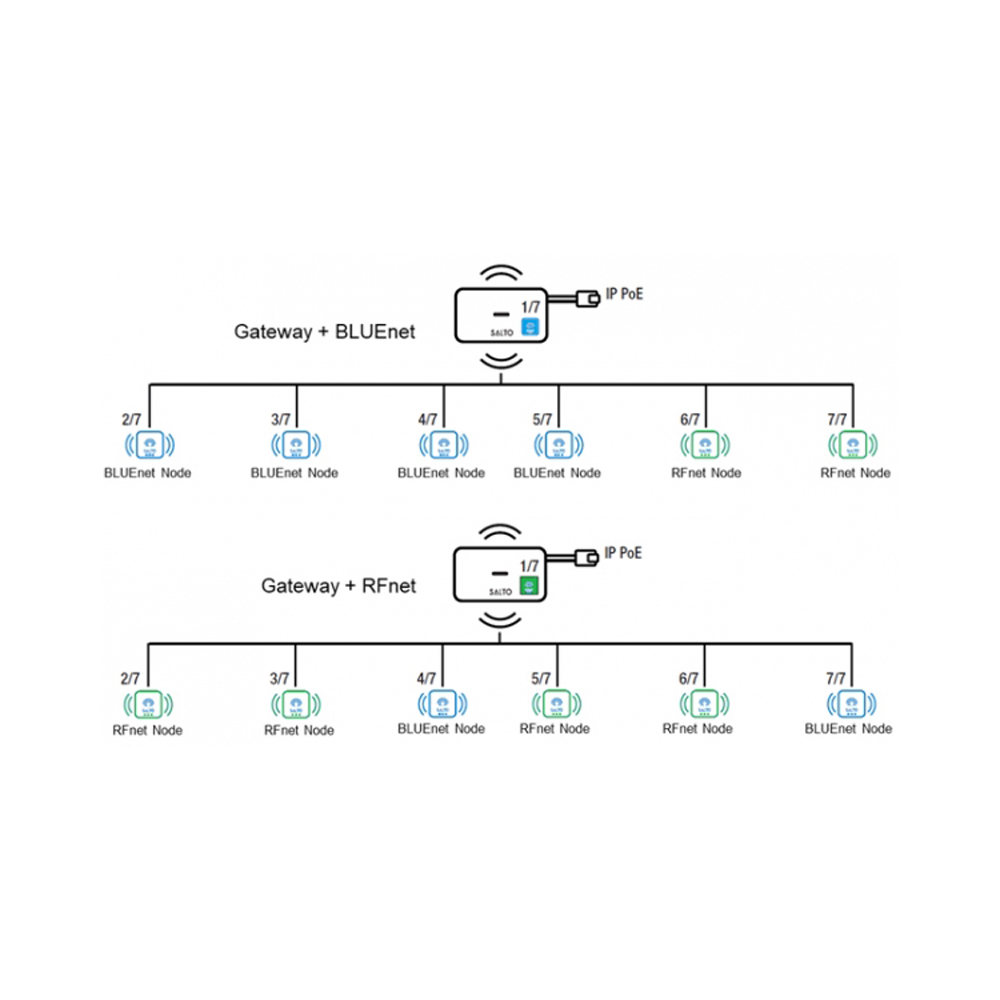

- The first node must be connected to the gateway. Another node can be connected to each node (max. 6 units).
- Nodes cannot be placed after a repeater.
- The repeater is connected to a node or a repeater via Bluetooth. A maximum of 6 repeaters in a maximum of 2 lines are possible under a gateway / node (nesting depth max. 3 repeaters per line).
- Max. 16 BLUEnet access components per repeater / node, of which a maximum of 2 SVN-Flex update points.
Login
- Operation conditions
- Temperature: Min -20º - Max 70º
- Humidity: Min 35% - Max 85%
- Cable requirements:
- Node Connection (AB): Generic twisted pair wire
- Node Connection (Vdd): 24 AWG
- SALTO BLUEnet characteristics (if internal node installed):
- Frequency Range: 2400-2483,5 Mhz
- RF Standard: Bluetooth Low Energy
- Indoor Radio Range: 10/15m
- Max output power: 8dBm
- Auxiliary Power Supply:
- Input voltage: 7V (Min.) - 28V (max)
- Current consumption: 45mA
Information according to EU regulation (EU) 2023/988 (GPSR):
Salto Systems GmbH
Schwelmer Str. 245, 42389 Wuppertal, DE
Web: www.saltosystems.com
