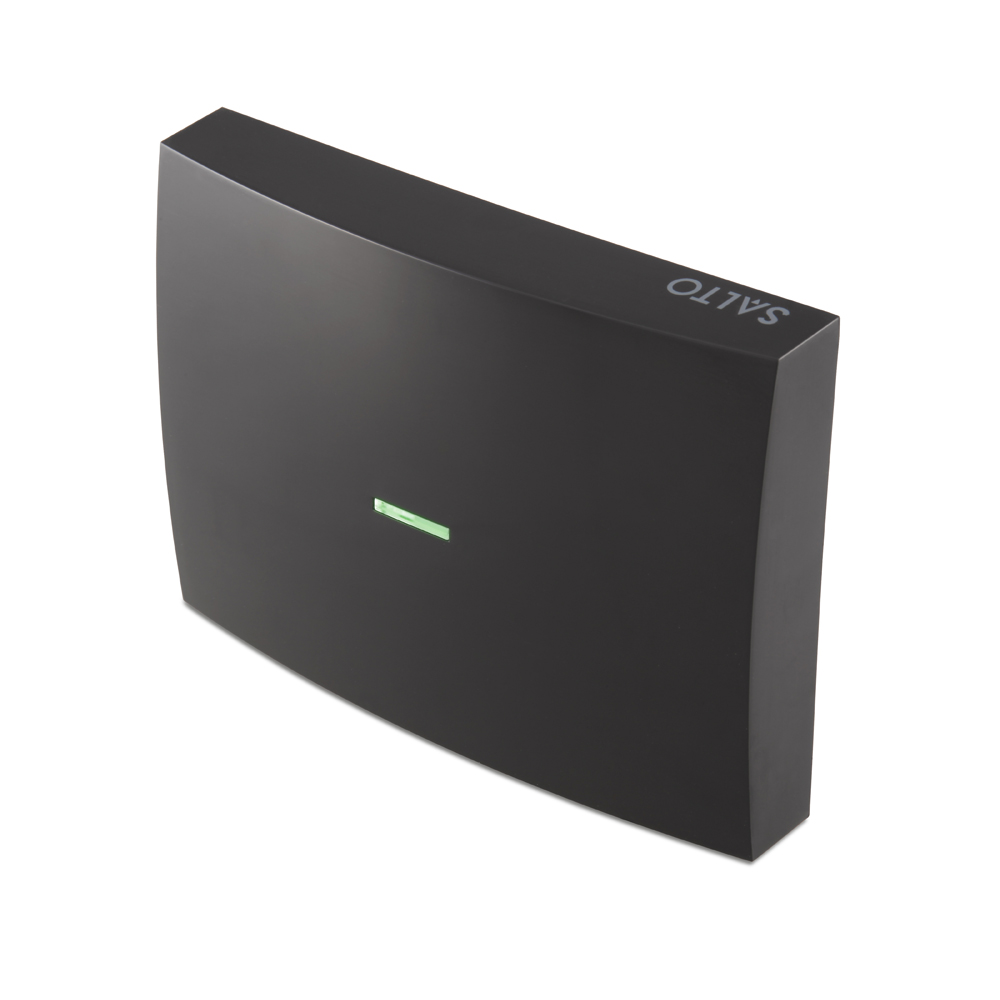

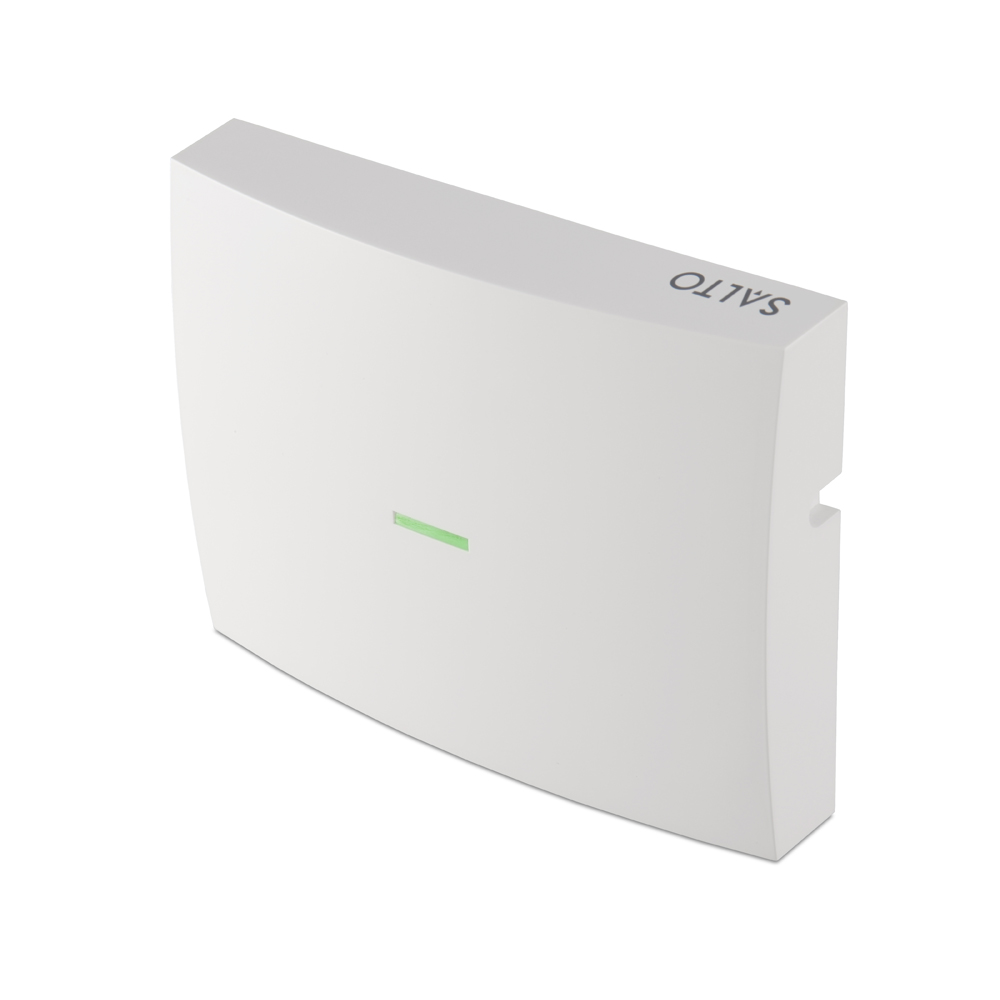

SALTO - Wireless-Gateway 3 BLUEnet
Delivery Time 3-4 weeks
Gateway 3 for the connection between the server and the SALTO wireless network (BLUEnet, optional RFnet).
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE | 0,00 |
|
-
SALTO - Wireless-Gateway 3 BLUEnet375,27 €
Product information "SALTO - Wireless-Gateway 3 BLUEnet"
The SALTO - Wireless-Gateway 3 BLUEnet - GATEWAYx3CEU is the link the PC and the wireless network. Completely managed through SALTO ProAccess SPACE software, it collects all the information sent by the escutcheons or the electronic cylinders through the nodes by using the Bluetooth smart technology.
Up to 7 nodes can be connected to a Wireless-Gateway 3 BLUEnet (1 internal + 6 external nodes). 1 internal SALTO BLUEnet node included. Mixed operation of RFnet and BLUEnet nodes is possible. All communication with the SALTO Gateway 3 is AES 128-bit encrypted. Max. 16 BLUEnet access components per repeater / node, of which a maximum of 2 SVN-Flex update points. Max. 112 BLUEnet access components per gateway.
Main features
- compatible with SALTO BLUEnet wireless network
- Wireless radio frequency based on Bluetooth Low Energy
- AES 128bits encryption
- connection to the LAN Network 10 BASE-T/100 BASE-TX
- PoE supported IEEE802.3af (12V power adapter optional)
- can manage several nodes and many locks
- One gateway can manage up to 7 nodes (1 internal + 6 external nodes)
- External nodes compatible through BUS485: RFNODE (RFnet) and RFNODE3 (SALTO BLUEnet)
- IP addressing through web explorer available
- Firmware update via software through Ethernet connection
- one internal node included (SALTO BLUEnet node)
- LED lamps: Multi colour led to notify the status of the device
- Tamper switch: Built in tamper microswitch to notify if the Gateway has been opened
- DHCP by default: Recommended

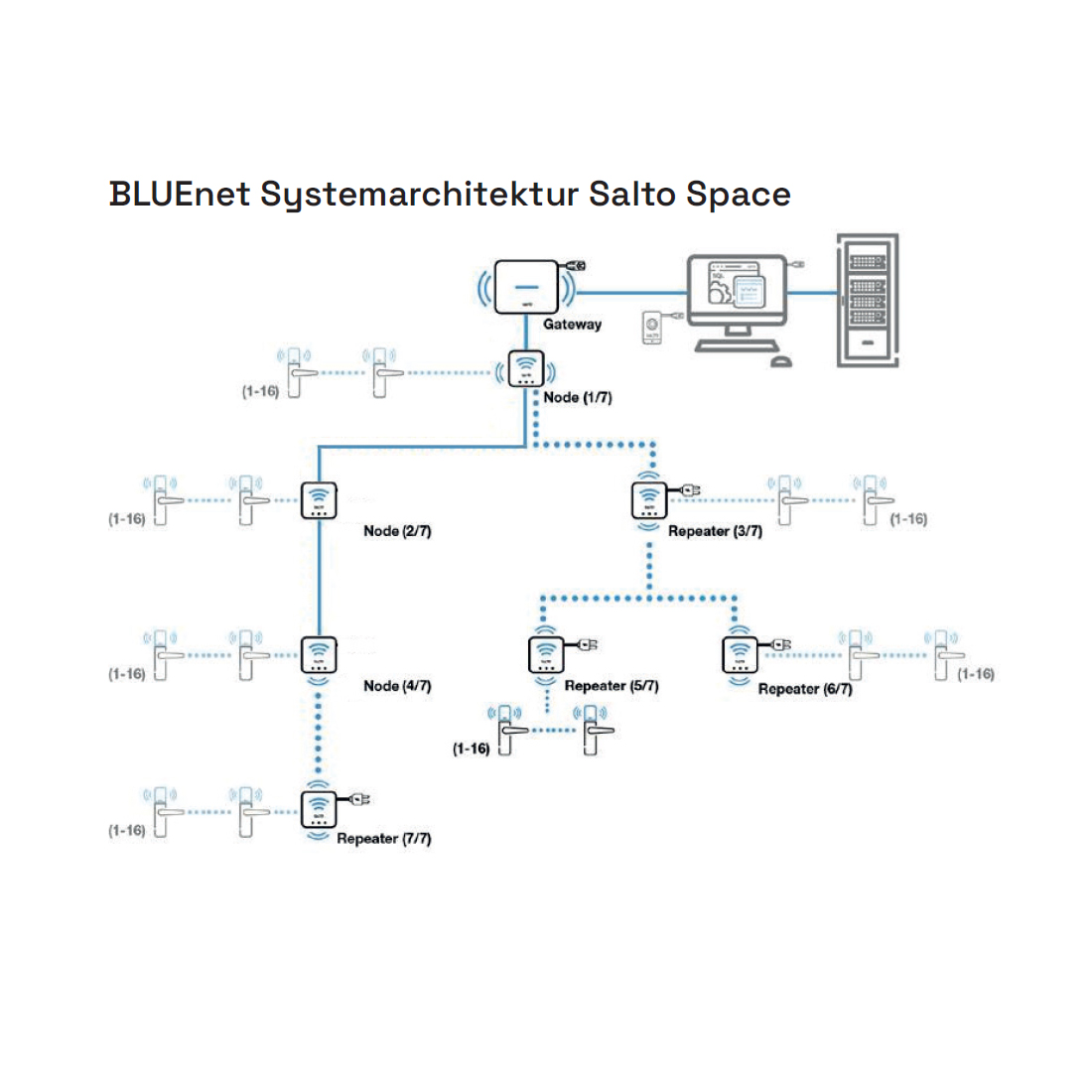

System Specifications for SALTO SPACE

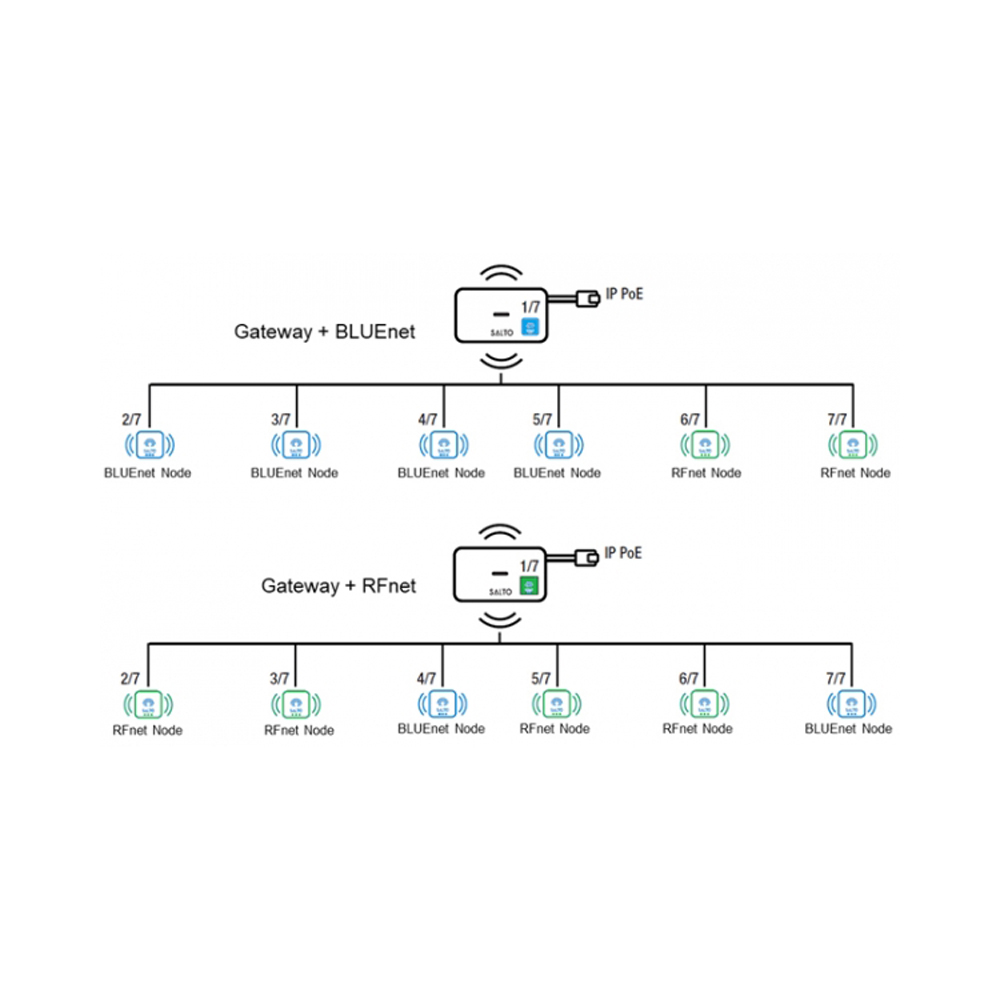

- One gateway can manage up to 7 nodes (including the internal node) or up to 6 repeaters (mixed operation of nodes and repeaters is possible).
- The first node must be connected to the gateway. A further node can be connected to each node (max. 6 units).
Nodes cannot be placed after a repeater. - The repeater is connected to a node or repeater via Bluetooth. A maximum of 6 repeaters in a maximum of 2 lines are possible under one gateway/node (max. nesting depth: 3 repeaters per line).
- Max. 16 BLUEnet access components per repeater/node, including a maximum of 2 SVN-Flex update points.
- Max. 112 BLUEnet access components per gateway, including a maximum of 10 SVN-Flex update points.
- Please note: It is not possible to connect door components and repeaters to nodes at the same time.
Login
- Operation conditions
- Temperature: Min 0º - Max 60º
- Humidity: Min 35% - Max 85%
- Cable requirements:
- Ethernet: UTP CAT5e
- Node Connection (AB): Generic twisted pair wire
- Node Connection (Vdd): 24 AWG
- SALTO BLUEnet Characteristics (if internal node installed):
- Frequency Range: 2400-2483 Mhz
- RF Standard: Bluetooth Low Energy
- Indoor Radio Range: 10/15m
- Max output power: 8dBm
- PoE (IEEE 802.3af):
- Class: 2
- MaxPower: 5W
- Ethernet standard: 10BASE-T/100BASE- TX.
- Auxiliary Power Supply:
- Input voltage: 10V (Min.) - 15V (max)
- Current consumption: 75mA (Min.) - 500mA max)
- Includes tamper to monitor if the wall reader has been opened.
Information according to EU regulation (EU) 2023/988 (GPSR):
Salto Systems GmbH
Schwelmer Str. 245, 42389 Wuppertal, DE
Web: www.saltosystems.com
