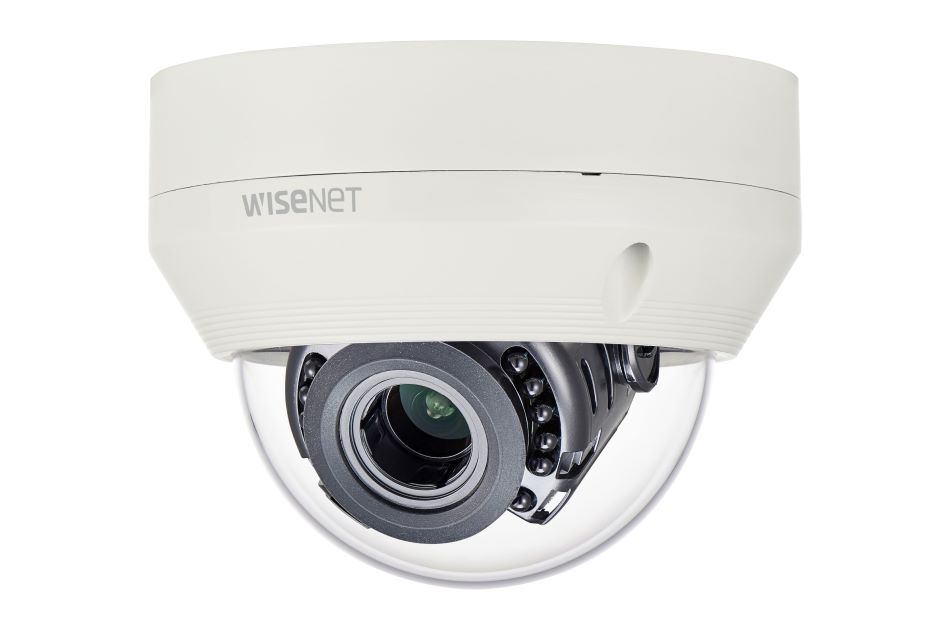

Hanwha Vision - HCV-6070R
Available, delivery time: 2-3 days
1/2,8'' AHD Dome, Fix, Tag/Nacht, 3,2-10mm, Infrarot, 1920x1080, WDR, IP66, IK10
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - HCV-6070R"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 6
- Expectation: 5 in 5 weeks
- Replacement time: 10 days
- Last update: 24.03.2025 - subject to prior sale
Kameratechnik - Analog HD-Kameras - Fix Domes - Hanwha Vision - HCV-6070R
1/2,8'' AHD Dome, Fix, Tag/Nacht, 3,2-10mm, Infrarot, 1920x1080, WDR, IP66, IK10
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' Multisignal HD über Koax Fix Dome
- Signalformate (wählbar): AHD, TVI, CVI, FBAS
- True Day/Night mit umschaltbarem IR Sperrfilter
- 3,2 ~ 10mm Varifokal Objektiv, DC-Iris
- Full-HD Auflösung 1920x1080@25fps
- Lichtempfindlichkeit 0,11 Lux bei F1,6 (Farbe)
- Verzögerungsfreie Bildübertragung bis max. 500m
- Wide Dynamic Range (WDR) mit 120 dB Dynamik
- SSNR IV Rauschunterdrückung
- Integrierte IR-Beleuchtung mit bis zu 30m Reichweite
- Duale Stromversorgung 12VDC/24VAC
- Für Außenanwendung, IP66, IK10
Specifications
| System | True Day&Night |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certificates | IK10 |
| Horizontal angle of view | 110,2 - 32 ° |
| Alarm outputs | 1 |
| Sensitivity | 0,11 Lux, at F1.6 |
| Serie | WiseNet HD+ |
| Illumination | infrared |
| Colour (bubble) | clear |
| Serial interfaces | Pelco-C (Coaxitron) |
| Colour (housing) | ivory Pantone Cool Gray 1C |
| Low speed shutter | yes |
| Sensor size | 1/2.9'' |
| Heater | yes |
| Mounting | ceiling mount wall mount |
| Digital zoom | no |
| Housing | outdoor |
| Backlight compensation | BLC HLC |
| Imager | CMOS |
| Video outputs | AHD HD-TVI CVI composite (CVBS) |
| Focal length | 3,2 - 10 mm |
| Protection rating | IP66 |
| Housing material | aluminium |
| Alarm inputs | no |
| Digitale Rauschunterdrückung (DNR) | SSNR IV |
| Lens type | varifocal |
| Sensitivity | at F1.6 |
| IR cut filter | switchable |
| Temperature range (operation) | -30°C ~ +55°C |
| Vandalism resistant | yes |
| Motion detector | yes |
| Supply voltage | 12VDC 24VAC |
| Resolution pixels | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| System | True Day&Night |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certificates | IK10 |
| Horizontal angle of view | 110,2 - 32 ° |
| Alarm outputs | 1 |
| Sensitivity | 0,11 Lux, at F1.6 |
| Serie | WiseNet HD+ |
| Illumination | infrared |
| Colour (bubble) | clear |
| Serial interfaces | Pelco-C (Coaxitron) |
| Colour (housing) | ivory Pantone Cool Gray 1C |
| Low speed shutter | yes |
| Sensor size | 1/2.9'' |
| Heater | yes |
| Mounting | ceiling mount wall mount |
| Digital zoom | no |
| Housing | outdoor |
| Backlight compensation | BLC HLC |
| Imager | CMOS |
| Video outputs | AHD HD-TVI CVI composite (CVBS) |
| Focal length | 3,2 - 10 mm |
| Protection rating | IP66 |
| Housing material | aluminium |
| Alarm inputs | no |
| Digitale Rauschunterdrückung (DNR) | SSNR IV |
| Lens type | varifocal |
| Sensitivity | at F1.6 |
| IR cut filter | switchable |
| Temperature range (operation) | -30°C ~ +55°C |
| Vandalism resistant | yes |
| Motion detector | yes |
| Supply voltage | 12VDC 24VAC |
| Resolution pixels | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
