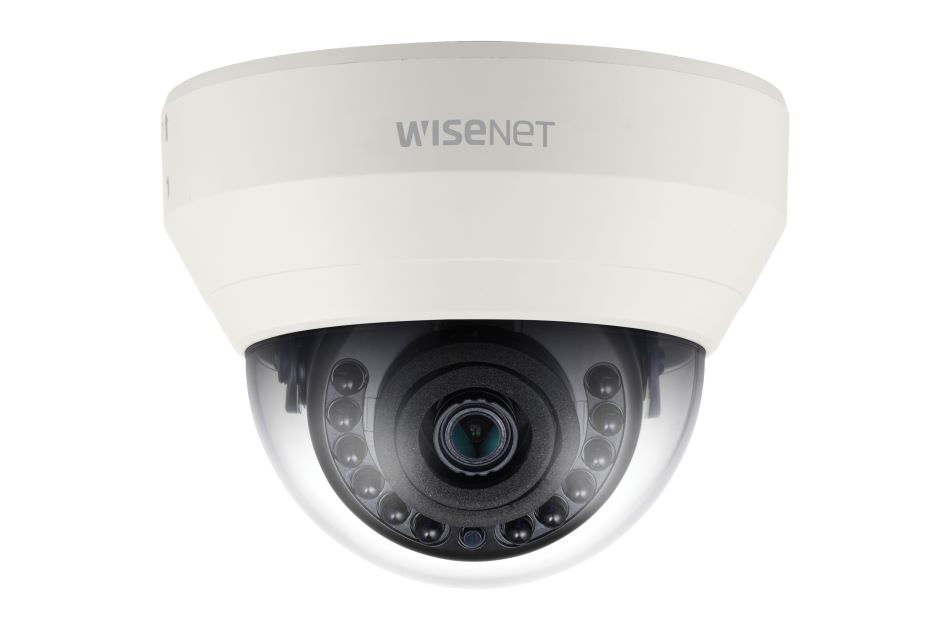

Hanwha Vision - HCD-6020R
Delivery Time 2-3 weeks
1/2,8'' AHD Dome, Fix, Tag/Nacht, 4mm, 1920x1080, Infrarot, 12VDC
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - HCD-6020R"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 10 days
- Last update: 24.03.2025 - subject to prior sale
Kameratechnik - Analog HD-Kameras - Fix Domes - Hanwha Vision - HCD-6020R
1/2,8'' AHD Dome, Fix, Tag/Nacht, 4mm, 1920x1080, Infrarot, 12VDC
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' Analog HD über Koax Fixdome
- True Day/Night mit umschaltbarem IR Sperrfilter
- Multisignal: AHD/TVI/CVI/CVBS auswählbar
- Full HD Auflösung 1920x1080@25fps
- F1,6/4 mm Festbrennweite, 87,6° HFoV
- Lichtempfindlichkeit 0,17 Lux bei F1,6 (Farbe)
- Infrarotbeleuchtung, bis 20m Reichweite
- Verzögerungsfreie Bildübertragung bis max. 500m
- Steuerung über Koax: ACP, TCP, CCP, Pelco-C
- Einfache Installation (Plug & Play)
- 12VDC Stromversorgung
- Für Innenanwendung
Specifications
| System | True Day&Night |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Horizontal angle of view | 87,6 ° |
| Alarm outputs | no |
| Sensitivity | 0,17 Lux, at F1.6 |
| Serie | WiseNet HD+ |
| Illumination | infrared |
| Colour (bubble) | clear |
| Serial interfaces | Pelco-C (Coaxitron) |
| Colour (housing) | ivory Pantone Cool Gray 1C |
| Low speed shutter | yes |
| Sensor size | 1/2.8'' |
| Heater | no |
| Mounting | ceiling mount wall mount |
| Digital zoom | no |
| Housing | indoor |
| Backlight compensation | BLC HLC |
| Imager | CMOS |
| Video outputs | AHD CVI HD-TVI |
| Focal length | 4 mm |
| Housing material | plastic |
| Protection rating | n/a |
| Alarm inputs | no |
| Digitale Rauschunterdrückung (DNR) | SSNR IV |
| Lens type | fixed focal length |
| Sensitivity | at F1.6 |
| IR cut filter | switchable |
| Temperature range (operation) | -10°C ~ +55°C |
| Vandalism resistant | no |
| Motion detector | yes |
| Supply voltage | 12VDC |
| Resolution pixels | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
