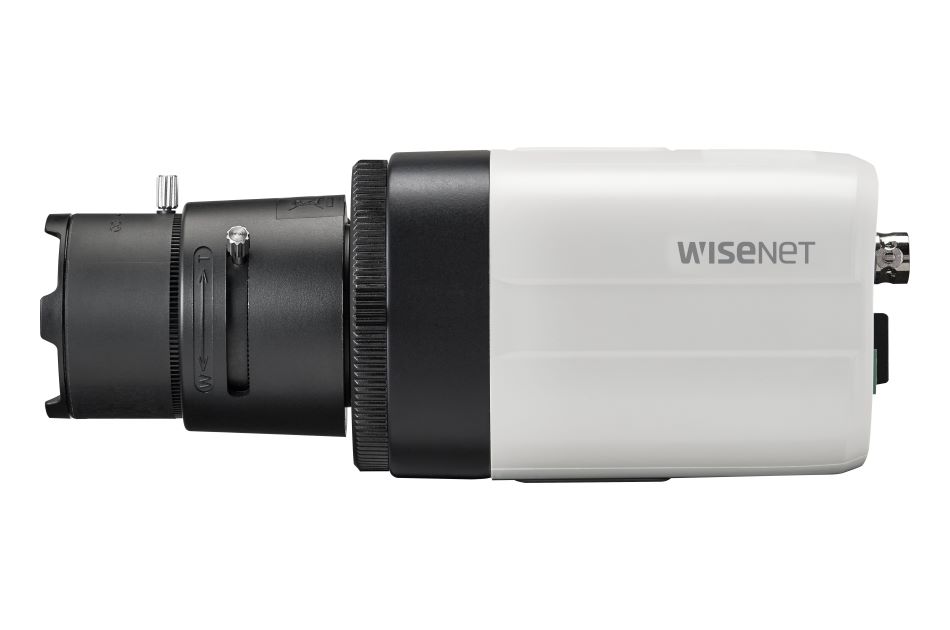

Hanwha Vision - HCB-6000PH
Available, delivery time: 2-3 days
1/2,8'' HD Kamera, Tag/Nacht, 1920x1080, WDR, 230V, RS-485
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - HCB-6000PH"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 30
- Expectation: 30 in 5 weeks
- Replacement time: 10 days
- Last update: 24.03.2025 - subject to prior sale
Kameratechnik - Analog HD-Kameras - Boxed Type - Hanwha Vision - HCB-6000PH
1/2,8'' HD Kamera, Tag/Nacht, 1920x1080, WDR, 230V, RS-485
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' Multisignal HD über Koax Kamera
- Signalformate (wählbar): AHD, TVI, CVI, FBAS
- True Day/Night mit umschaltbarem IR Sperrfilter
- DC-Iris, Objektiv nicht im Umfang
- Full-HD Auflösung 1920x1080@25fps
- Lichtempfindlichkeit 0,09 Lux bei F1,2 (Farbe)
- Verzögerungsfreie Bildübertragung bis max. 500m
- Wide Dynamic Range (WDR) mit 120 dB Dynamik
- SSNR IV Rauschunterdrückung
- Steuerung über Koaxialkabel oder RS-485
- Einfache Installation (Plug & Play)
- 230VAC Stromversorgung
Specifications
| Backlight compensation | BLC HLC |
| System | True Day&Night |
| Imager | CMOS |
| Video outputs | AHD HD-TVI CVI composite (CVBS) |
| Protection rating | n/a |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Alarm outputs | 1 |
| Alarm inputs | 1 |
| Digitale Rauschunterdrückung (DNR) | SSNR IV |
| Sensitivity | 0,09 Lux, at F1.2 |
| Serie | WiseNet HD+ |
| Lens mount | CS/C mount |
| Sensitivity | at F1.2 |
| IR cut filter | switchable |
| Serial interfaces | Pelco-C (Coaxitron) RS-485 |
| Temperature range (operation) | -10°C ~ +55°C |
| Low speed shutter | yes |
| Supply voltage | 230VAC |
| Motion detector | yes |
| Sensor size | 1/2.8'' |
| Resolution pixels | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Backlight compensation | BLC HLC |
| System | True Day&Night |
| Imager | CMOS |
| Video outputs | AHD HD-TVI CVI composite (CVBS) |
| Protection rating | n/a |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Alarm outputs | 1 |
| Alarm inputs | 1 |
| Digitale Rauschunterdrückung (DNR) | SSNR IV |
| Sensitivity | 0,09 Lux, at F1.2 |
| Serie | WiseNet HD+ |
| Lens mount | CS/C mount |
| Sensitivity | at F1.2 |
| IR cut filter | switchable |
| Serial interfaces | Pelco-C (Coaxitron) RS-485 |
| Temperature range (operation) | -10°C ~ +55°C |
| Low speed shutter | yes |
| Supply voltage | 230VAC |
| Motion detector | yes |
| Sensor size | 1/2.8'' |
| Resolution pixels | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
