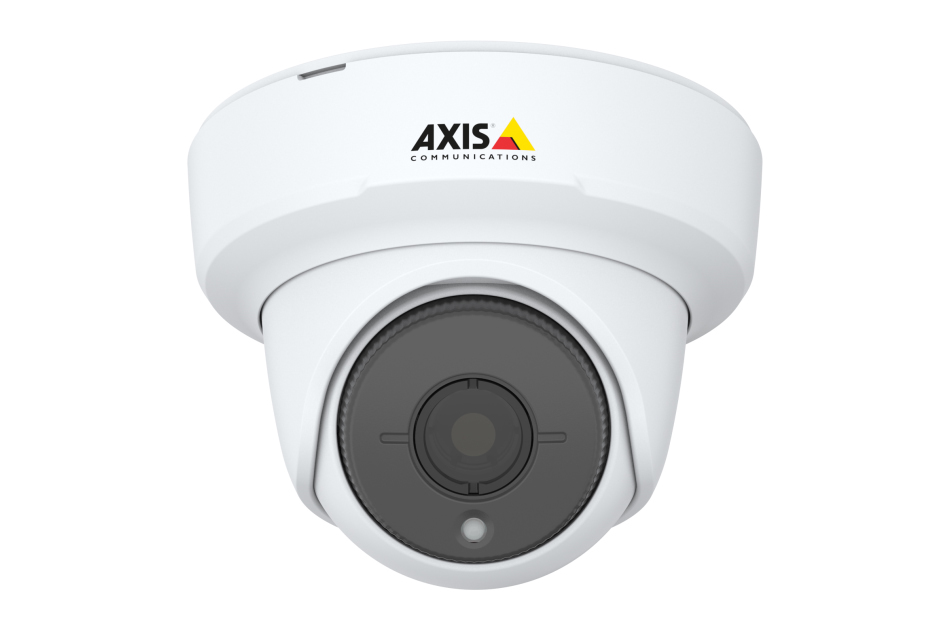

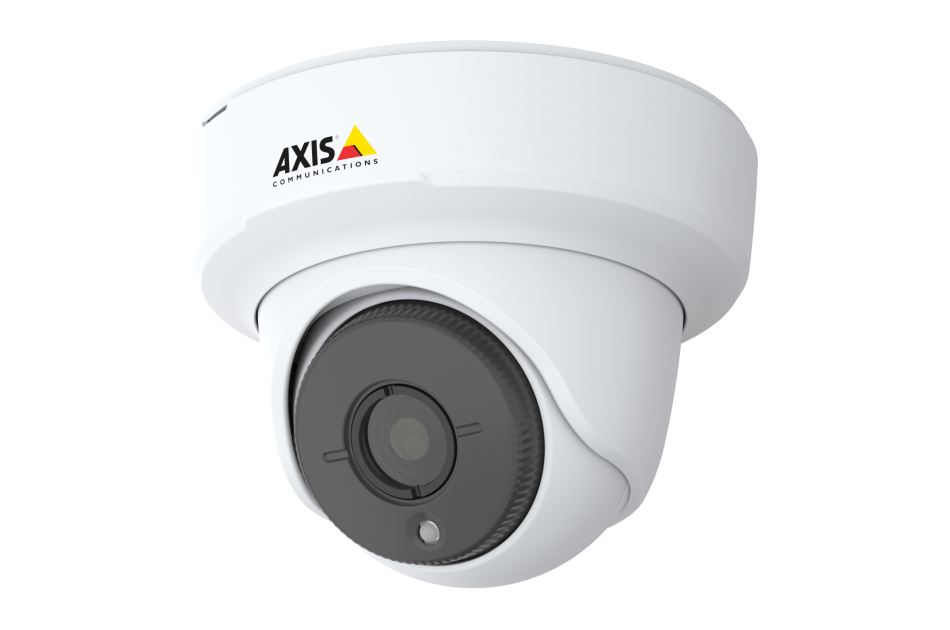

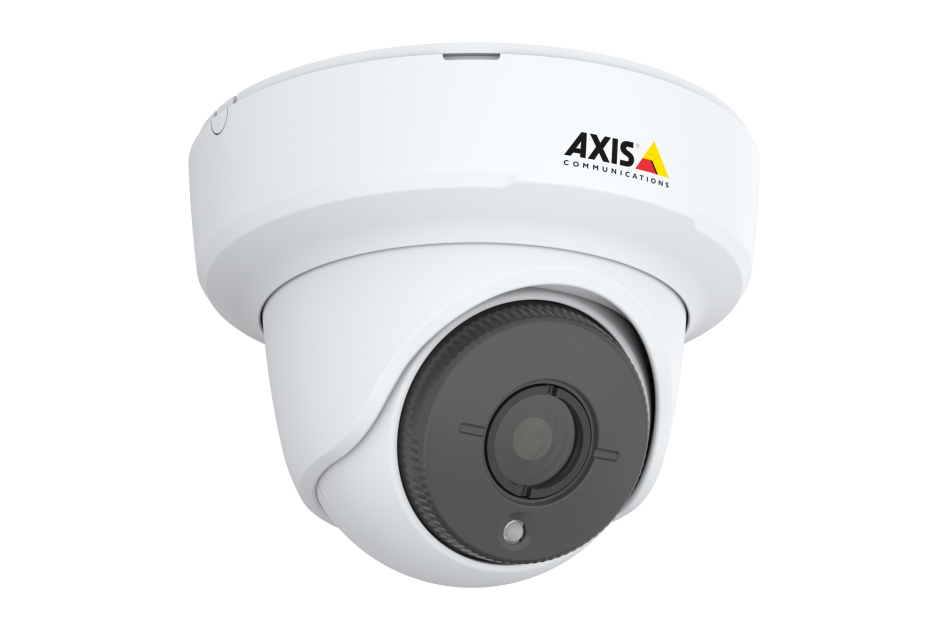

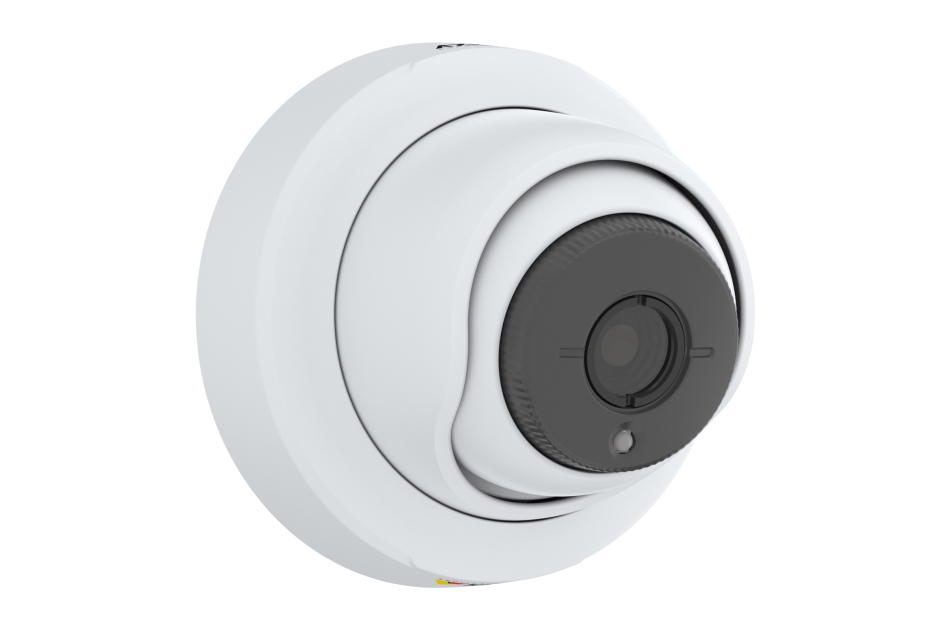

AXIS - AXIS FA3105-L EYEBALL SENSOR UNIT
Available, delivery time: 2-3 days
1/3'' Sensor Objektiv Einheit, Flat Dome, 3,13mm, 1920x1080, WDR, Infrarot, für AXIS FA54
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "AXIS - AXIS FA3105-L EYEBALL SENSOR UNIT"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 1
- Expectation: 0
- Replacement time: 4 weeks
- Last update: 26.05.2025 - subject to prior sale
Kameratechnik - Remote Head Kameras - AXIS - AXIS FA3105-L EYEBALL SENSOR UNIT
1/3'' Sensor Objektiv Einheit, Flat Dome, 3,13mm, 1920x1080, WDR, Infrarot, für AXIS FA54
Manufacturer datasheet
Hauptmerkmale
- Abgesetzte Sensoreinheit für AXIS FA-Serie
- Flat Face Dome mit Infrarotbeleuchtung
- Für besonders unauffällige Innenraumüberwachung
- 1/3'' Progressive Scan RGB CMOS Sensor
- Forensic WDR optimiert für bewegte Objekte
- Auflösung: 1080p@25fps
- Objektiv: F2,0/3,13mm, 103° FOV
- Lichtempfindlichkeit 0,02 Lux (Farbe)

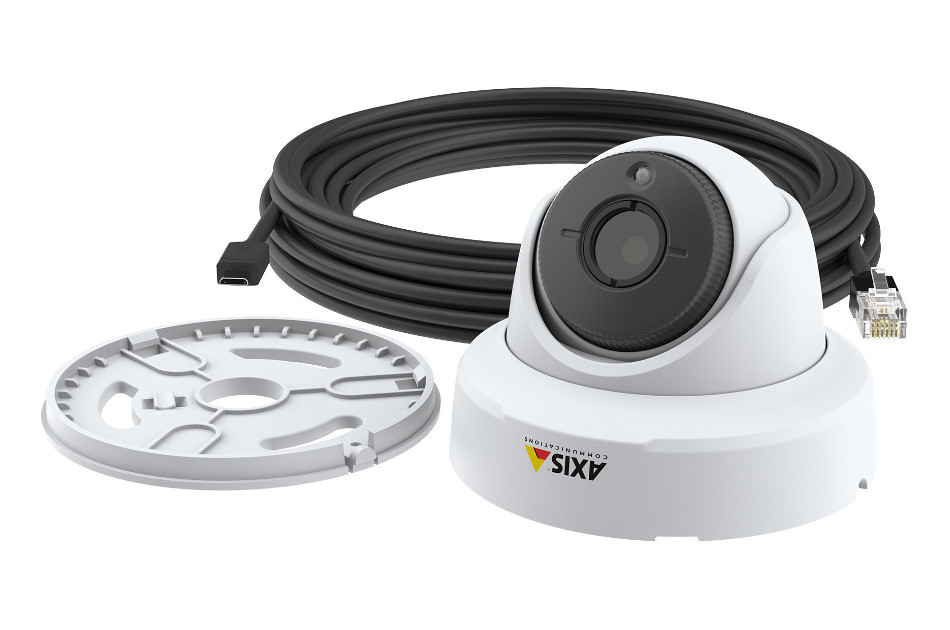

- Verbindungskabel mit 8m Länge (abtrennbar)
- Axis FA54 Basiseinheit erforderlich
Specifications
| Housing | indoor |
| System | colour |
| Imager | CMOS |
| Focal length | 3,13 mm |
| Housing material | aluminium plastic |
| Image transmission rate max. | 25 fps |
| Wide Dynamic Range (WDR) | Forensic WDR |
| Horizontal angle of view | 103 ° |
| Resolution standard | HD 1080p |
| Sensitivity | 0,2 Lux, at F2.0 |
| Lens type | fixed focal length |
| Serie | Axis F-Serie |
| Illumination | infrared |
| Sensitivity | at F2.0 |
| IR cut filter | standard |
| Colour (housing) | white |
| Temperature range (operation) | -20°C ~ +50°C |
| Low speed shutter | no |
| Vandalism resistant | no |
| Kameratyp | Kamera Sensoreinheit |
| Sensor size | 1/3'' |
| Resolution max. | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Housing | indoor |
| System | colour |
| Imager | CMOS |
| Focal length | 3,13 mm |
| Housing material | aluminium plastic |
| Image transmission rate max. | 25 fps |
| Wide Dynamic Range (WDR) | Forensic WDR |
| Horizontal angle of view | 103 ° |
| Resolution standard | HD 1080p |
| Sensitivity | 0,2 Lux, at F2.0 |
| Lens type | fixed focal length |
| Serie | Axis F-Serie |
| Illumination | infrared |
| Sensitivity | at F2.0 |
| IR cut filter | standard |
| Colour (housing) | white |
| Temperature range (operation) | -20°C ~ +50°C |
| Low speed shutter | no |
| Vandalism resistant | no |
| Kameratyp | Kamera Sensoreinheit |
| Sensor size | 1/3'' |
| Resolution max. | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
